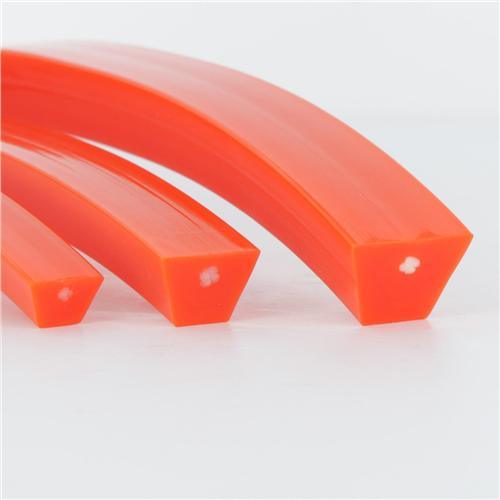

4940065 by Fenner Drives | Eagle 85 V Belt | Cross Section: Z/10 | 10mm w x 6.5mm h | Reinforced | Orange | 100ft

4940065 by Fenner Drives | Eagle 85 V Belt | Cross Section: Z/10 | 10mm w x 6.5mm h | Reinforced | Orange | 100ft

Sale price$354.42
Fenner Drives - Conveying - V Belting - Z/10, 3L Cross Sections - Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $333.15
15–29 $301.26
30+ $283.54
Discounts applied in cart/checkout.
Overview:
  • Eagle Orange 85 Reinforced Vee Belting is constructed of polyurethane with an 85 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m length.
Description:
  • Eagle Orange 85 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Orange 85 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Vee belt profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 Shore A durometer
  • polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch, High strength, REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Reinforced Vee Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Orange 85 Reinforced Vee Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Vee Profile Size: A/13, B/17, Z/10
Reinforcement: Single Polyester Cord Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940070 Eagle Beige 95 3L 3/8" x 7/32" --- 2.63" 67mm 11.4 50.5 26.5 117.9 38.9 172.9 47.8 212.8 0.036 lbs 0.054 kg
5299010 Eagle Hyfen 85 3L Twin 15/16" x 17/64" --- 2.92" 74mm 15.5 68.8 21.8 96.8 28.4 126.4 34.7 154.4 0.095 lbs 0.142 kg
4940065 Eagle Orange 85 Z/10 --- 10 x 6.5mm 2.38" 65mm 2.4 10.7 5.7 25.3 9.1 40.4 12 53.3 0.04 lbs 0.06 kg
L04I85ZR Eagle Ivory 85 Z/10 --- 10 x 6.5mm 2.56" 65mm 3.1 13.7 9.3 41.3 14.8 65.7 18.8 83.8 0.04 lbs 0.06 kg

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
