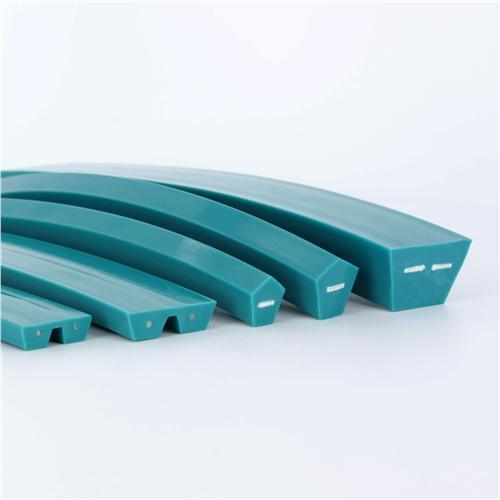

5299010 by Fenner Drives | Eagle Hyfen 85 V Belt | Cross Section: 3L Twin | 15/16" w x 17/64" h | Reinforced | Green, Blue | 100ft

5299010 by Fenner Drives | Eagle Hyfen 85 V Belt | Cross Section: 3L Twin | 15/16" w x 17/64" h | Reinforced | Green, Blue | 100ft

Sale price$1,796.17
Fenner Drives - Conveying - V Belting - Z/10, 3L Cross Sections - Reinforced

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,688.40
8–14 $1,616.55
15+ $1,436.94
Discounts applied in cart/checkout.
Overview:
  • Fenner Drives Eagle Hyfen 85 Reinforced Belts are made of an 85 Shore A durometer polyurethane belting with a polyester reinforcing tensile member making this product an ideal high-strength, low-stretch choice for longer conveyor lengths, heavier load, or medium-duty power transmission applications.
Description:
  • Eagle Beige 95 Reinforced Vee Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Beige 95 Reinforced Vee Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: Longer conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications.

  • 85 Shore A durometer polyurethane belting
  • High strength, low-stretch
  • REACH and RoHS 2002/95/EC Directive Compliant
  • Independently tested and verified to meet FDA standards for direct food contact


    • Eagle Hyfen 85 Reinforced Belts offer all the dependable features of Fenner Drives Original Orange Reinforced Belt plus the added benefit of more strength due to the stronger reinforcing tensile member

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Hyfen 85 Reinforced Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Hyfen 85 Specialty Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Ridge Top, Twin, Vee Profile Size: 3L, A/13, B/17, D/32
Reinforcement: Polyester Tape Color: Blue, Green
Compliancy: FDA, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Cross Section Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940070 Eagle Beige 95 3L 3/8" x 7/32" --- 2.63" 67mm 11.4 50.5 26.5 117.9 38.9 172.9 47.8 212.8 0.036 lbs 0.054 kg
5299010 Eagle Hyfen 85 3L Twin 15/16" x 17/64" --- 2.92" 74mm 15.5 68.8 21.8 96.8 28.4 126.4 34.7 154.4 0.095 lbs 0.142 kg
4940065 Eagle Orange 85 Z/10 --- 10 x 6.5mm 2.38" 65mm 2.4 10.7 5.7 25.3 9.1 40.4 12 53.3 0.04 lbs 0.06 kg
L04I85ZR Eagle Ivory 85 Z/10 --- 10 x 6.5mm 2.56" 65mm 3.1 13.7 9.3 41.3 14.8 65.7 18.8 83.8 0.04 lbs 0.06 kg

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
