4940064 by Fenner Drives | Eagle 85 Round Belting | 3/4" Diameter | Reinforced | Orange | 100ft
Fenner Drives

4940064 by Fenner Drives | Eagle 85 Round Belting | 3/4" Diameter | Reinforced | Orange | 100ft

Sale price$2,089.45
Fenner Drives - Conveying - Round Belting - 18mm, 20mm, 3/4" Round - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

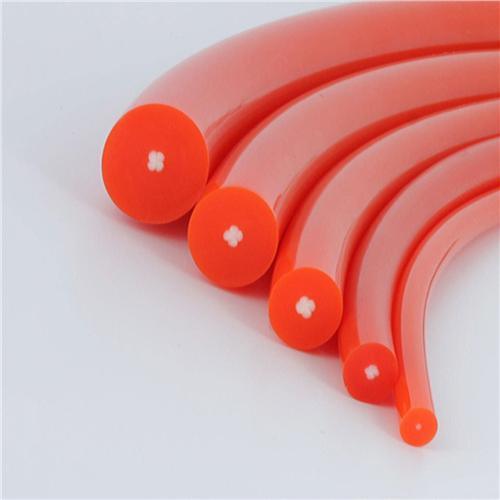

  • Eagle Orange 85 Reinforced Round Belting is constructed of polyurethane with an 85 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Orange 85 Reinforced Round Belts embody no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes heavier loads possible to convey. Eagle Orange 85 Reinforced Round Belts can also double as an option for your medium-duty power transmission applications.

    Best Suited For: An all-purpose, highly versatile polyester reinforced polyurethane belt for virtually any medium to heavy duty conveying application or medium duty power transmission application, requiring a Round belt profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • 85 shore A durometer
  • polyurethane belting
  • Polyester reinforcing tensile cord
  • Low stretch
  • High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • The proven workhorses! Eagle Orange 85 Reinforced Round Belts are the proven workhorses for material transfer and medium-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Orange Reinforced Vee Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Orange 85 Reinforced Round Belts are not self-tensioning, they work perfectly with Fenner Drives' own T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 12.5mm, 3/4", 3/8", 5/16", 6.3mm, 8mm, 9.5mm
Reinforcement: Single Polyester Cord Color: Orange
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940055 Eagle Green 89 Textured --- 18mm 7.09" 180mm 29.6 131.7 89 395.7 182.2 810.5 280.9 1249.7 0.203 lbs 0.303 kg
4940064 Eagle Orange 85 3/4" --- 7.5" 191mm 7.2 32.1 25 111.1 48.7 216.6 69.9 311 0.23 lbs 0.342 kg
5218033 Eagle Hyfen 85 3/4" --- 8.25" 210mm 16.7 74.3 36.6 162.8 58 258 75.8 337.2 0.23 lbs 0.342 kg
