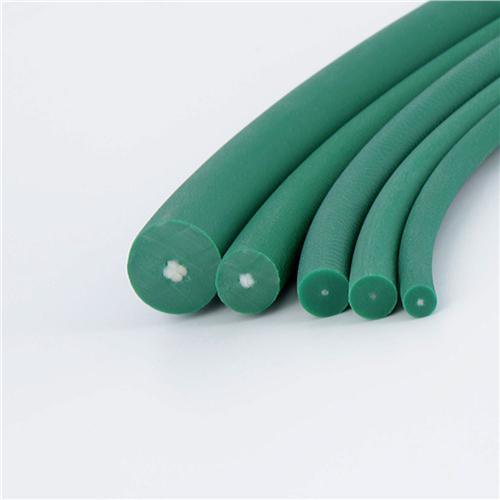

4940055 by Fenner Drives | Eagle 89 Textured Round Belting | 18mm Diameter | Reinforced | Green | 100ft
Fenner Drives

4940055 by Fenner Drives | Eagle 89 Textured Round Belting | 18mm Diameter | Reinforced | Green | 100ft

Sale price$2,483.55
Fenner Drives - Conveying - Round Belting - 18mm, 20mm, 3/4" Round - Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:
  • Eagle Green 89 Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer and reinforced with a polyester tensile cord that combines excellent abrasion resistance with high strength and low stretch. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. They carry no-nonsense qualities such as high-strength, low stretch, and a polyester reinforcing tensile cord that makes those impossibly heavy loads possible to convey. Eagle Green 89 Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of friction) is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Polyester reinforcing tensile member
  • Superior heat and water resistance
  • Low stretch
  • High strength
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit or for the strongest weld possible, a Fenner Drives Overlap Welding Kit.

    Since Eagle Green 89 Reinforced Textured Round Belts are not self-tensioning, they work perfectly with Fenner Drives' T-Max Automatic Belt Tensioners.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 18mm, 5mm, 6mm, 7mm, 8mm, 9mm
Reinforcement: Single Polyester Cord Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature Textured
Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4940055 Eagle Green 89 Textured --- 18mm 7.09" 180mm 29.6 131.7 89 395.7 182.2 810.5 280.9 1249.7 0.203 lbs 0.303 kg
4940064 Eagle Orange 85 3/4" --- 7.5" 191mm 7.2 32.1 25 111.1 48.7 216.6 69.9 311 0.23 lbs 0.342 kg
5218033 Eagle Hyfen 85 3/4" --- 8.25" 210mm 16.7 74.3 36.6 162.8 58 258 75.8 337.2 0.23 lbs 0.342 kg
