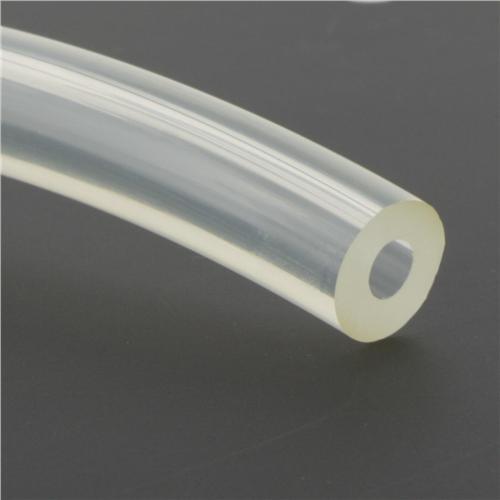

4934030 by Fenner Drives | Eagle 85 QC Round Belting | .625 x .273" Diameter | Non-Reinforced | Clear | 100ft

4934030 by Fenner Drives | Eagle 85 QC Round Belting | .625 x .273" Diameter | Non-Reinforced | Clear | 100ft

Sale price$1,447.51
Fenner Drives - Conveying - Round Belting - 15mm, 16mm, 5/8" Round Cross Sections

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,360.66
8–14 $1,302.76
15+ $1,158.01
Discounts applied in cart/checkout.
Overview:
  • Eagle Clear 85 Quick Connect (QC) has a round, hollow construction with 85 Shore A durometer that can quickly and easily be joined with metal connectors (included) so that there is no welding required. Packaged in 100'/30.5m lengths.
Description:
  • A round, hollow connectable polyurethane belting, Eagle Clear 85 QC is the ideal quick fix on packaging and conveying lines where minimal downtime is desired. All Eagle QC belting can be installed without dismantling drive shafts and is easily made endless using a barbed connector.

    Best Suited For: Light duty conveying or motion transfer applications where it is undesirable or impractical to weld the belt.

  • Easy installation without dismantling drive shafts
  • No welding required
  • Easily made endless with Fenner Drives Quick Connectors


    • Eagle Clear 85 QC is manufactured from a clear 85 Shore A durometer polyurethane belting that provides excellent abrasion resistance, high elasticity, and is also self-tensioning.

  • 85 Shore A durometer
  • Highly elastic
  • REACH and RoHS 2002/95/EC Directive compliant

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/4", 10mm, 12mm, 2mm, 3/8", 3mm, 4mm, 5mm, 6.3mm, 6mm, 7mm, 8mm, 9.5mm
Reinforcement: None Color: Opaque
Compliancy: REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP8015M Eagle Opaque 80 --- 15mm 4.13" 105mm 11.6 51.6 19.7 87.7 27.6 122.6 34.7 154.4 0.145 lbs 0.216 kg
L04BL8515 Eagle Blue 85 --- 15mm 4.72" 120mm 10.8 48.1 16.7 74.2 22.2 99 27.4 121.9 0.142 lbs 0.212 kg
L04G8915MS Eagle Green 89 --- 15mm 5.31" 135mm 18 80 29.5 131.4 40.6 180.5 50.7 225.5 0.141 lbs 0.21 kg
4905315 Eagle Green 89 Textured --- 15mm 5.31" 135mm 13.1 58.1 21.5 95.4 29.5 131.1 36.8 163.8 0.141 lbs 0.21 kg
4999315 Eagle Red 90 --- 15mm 5.91" 150mm 59.1 262.9 85.2 378.8 107.2 476.8 125.4 557.9 0.144 lbs 0.214 kg
L04BE9515M Eagle Beige 95 --- 15mm 5.91" 150mm 47.8 212.5 67.7 301.2 84.6 376.2 98.9 440 0.146 lbs 0.217 kg
4941107 Eagle Blue 80 MD 5/8" --- 4.38" 111mm 8.4 37.5 13.1 58.2 17.4 77.6 21.7 96.4 0.149 lbs 0.222 kg
1032020 Eagle Orange 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4908030 Eagle Clear 85 5/8" --- 5" 127mm 12.1 53.9 18.7 83.1 24.9 110.8 30.7 136.5 0.16 lbs 0.238 kg
4907030 Eagle Clear 95 5/8" --- 6.25" 159mm 22.7 100.9 33.7 149.8 43.2 192.3 51.4 228.7 0.164 lbs 0.243 kg
4934030 Eagle Clear 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4934020 Eagle Yellow 85 QC .625 x .273"* --- 5" 127mm 5 22.1 7.7 34.2 10.3 45.9 12.7 56.6 0.129 lbs 0.192 kg
4935030 15 per Pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.

Product Data:

Brand:
  • Eagle
Series:
  • 85 QC Series

Fenner Drives

Fenner Drives is a leading manufacturer of products for power transmission, motion transfer, and conveying applications. We consistently blend reliability, quality, and value across our entire product portfolio, which includes tensioners, pulleys and idlers, and bearings.
