4934026 by Fenner Drives | Eagle 85 QC Round Belting | .500 x .205*" Diameter | Non-Reinforced | Yellow | 100ft
Fenner Drives

4934026 by Fenner Drives | Eagle 85 QC Round Belting | .500 x .205*" Diameter | Non-Reinforced | Yellow | 100ft

Sale price$1,247.42
Fenner Drives - Conveying - Round Belting - 10mm, 12mm, 12.7mm, 1/2" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 85 Series
Overview:

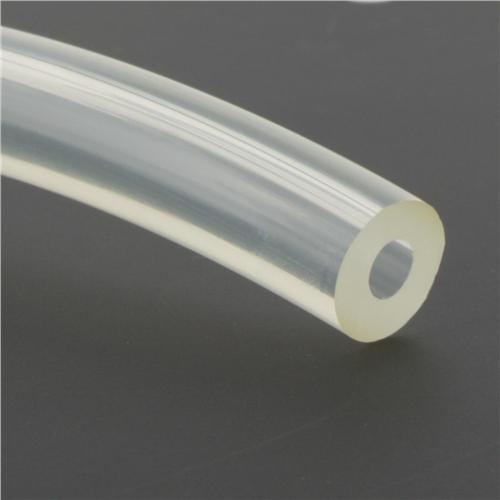

  • Eagle Yellow 85 Quick Connect (QC) has a round, hollow construction with 85 Shore A durometer that can quickly and easily be joined with metal connectors (included) so that there is no welding required Yellow. Packaged in 100'/30.5m lengths.
Description:
  • A round, hollow connectable polyurethane belting, Eagle Yellow 85 QC is the ideal quick fix on packaging and conveying lines where minimal downtime is desired. All Eagle QC belting can be installed without dismantling drive shafts and is easily made endless using a barbed connector.

    Best Suited For: Light duty conveying or motion transfer applications where it is undesirable or impractical to weld the belt.

  • Easy installation without dismantling drive shafts
  • No welding required
  • Easily made endless with Fenner Drives Quick Connectors


    • Eagle Yellow 85 QC is manufactured from a yellow 85 Shore A durometer polyurethane belting that provides excellent abrasion resistance, high elasticity, and is also self-tensioning.

    85 Shore A durometer, Highly elastic, REACH and RoHS 2002/95/EC Directive compliant

SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 3/16", 3/8", 5/16", 5/8"
Reinforcement: None Color: Yellow
Compliancy: FDA, REACH, RoHS Durometer: 85A
Material: Polyurethane Special Feature: Hollow Round

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928008 Eagle Blue 80 EC --- 10mm 2.76" 70mm 3.7 16.4 5.8 25.6 7.7 34.1 9.6 42.6 0.059 lbs 0.088 kg
4927008 Eagle Clear 80 EC --- 10mm 2.76" 70mm 3.7 16.4 5.8 25.6 7.7 34.1 9.6 42.6 0.059 lbs 0.088 kg
L04OP8010M Eagle Opaque 80 --- 10mm 2.76" 70mm 5.1 22.9 8.8 39 12.2 54.5 15.4 68.6 0.064 lbs 0.096 kg
L04OG8510M Eagle Orange 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04C8510M Eagle Clear 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04BL8510M Eagle Blue 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04G8910MS Eagle Green 89 --- 10mm 3.54" 90mm 8 35.4 13.0 58.2 18 79.9 22.4 99.8 0.063lbs 0.093 kg
4905310 Eagle Green 89 Textured --- 10mm 3.54" 90mm 5.8 25.8 9.5 42.3 13.1 58.1 16.3 72.5 0.063 lbs 0.093 kg
L04R9010M Eagle Red 90 --- 10mm 3.94" 100mm 26.3 116.9 37.9 168.4 47.6 211.9 55.7 248 0.064 lbs 0.095 kg
L04QR8510M Eagle Red 85 QC --- 10 x 3.8mm* 3.15" 80mm 2.1 9.3 3.2 14.4 4.3 19.3 5.3 23.8 0.054 lbs 0.081 kg
L04OG8512M Eagle Orange 85 --- 12mm 3.78" 96mm 6.9 30.8 10.7 47.5 14.2 63.3 17.5 78 0.091 lbs 0.136 kg
L04C8512M Eagle Clear 85 --- 12mm 3.78" 96mm 6.9 30.8 10.7 47.5 14.2 63.3 17.5 78 0.091 lbs 0.136 kg
L04G8912MS Eagle Green 89 --- 12mm 4.25" 108mm 11.5 51.2 18.9 84.1 26 115.5 32.4 144.3 0.09 lbs 0.135 kg
4905312 Eagle Green 89 Textured --- 12mm 4.25" 108mm 8.4 37.3 13.8 61.2 18.9 84.1 23.6 105.1 0.091 lbs 0.135 kg
L04R9012M Eagle Red 90 --- 12mm 4.72" 120mm 37.8 168.4 54.5 242.5 68.6 305.2 80.3 357.2 0.092 lbs 0.137 kg
4941105 Eagle Blue 80 MD 1/2" 12.7mm 3.5" 89mm 5.4 23.9 8.4 37.3 11.2 49.7 13.8 61.6 0.095 lbs 0.142 kg
1032016 Eagle Orange 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 16 71 19.6 87.4 0.102 lbs 0.152 kg
4908024 Eagle Clear 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 16 71 19.6 87.4 0.102 lbs 0.152 kg
4940026 Eagle Red 90 1/2" 12.7mm 5" 127mm 42.4 188.6 61.1 271.7 76.9 342 90 400.2 0.103 lbs 0.153 kg
4907024 Eagle Clear 95 1/2" 12.7mm 5" 127mm 14.5 64.6 21.6 95.9 27.7 123.1 32.9 146.4 0.105 lbs 0.156 kg
4934024 Eagle Clear 85 QC .500 x .205"* --- 4" 102mm 3.3 14.5 5.1 22.5 6.8 30.2 8.4 37.2 0.085 lbs 0.126 kg
4934026 Eagle Yellow 85 QC .500 x .205"* --- 4" 102mm 3.3 14.5 5.1 22.5 6.8 30.2 8.4 37.2 0.085 lbs 0.126 kg
L04BL8512-7 Eagle Blue 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 15.9 70.9 19.6 87.4 0.102 lbs 0.152 kg
L04CON10S QC Connectors 20/pack (Use for 3/8" and 10mm)
L04CON13S QC Connectors 20/pack (Use for 1/2" and 12-13mm)

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
