4928008 by Fenner Drives | Eagle 80 EC Round Belting | 10mm Diameter | Non-Reinforced | Blue | 100ft

4928008 by Fenner Drives | Eagle 80 EC Round Belting | 10mm Diameter | Non-Reinforced | Blue | 100ft

Sale price$435.79
Quantity Price Each
50–99 $392.21
100+ $348.63
Discounts applied at checkout.
Fenner Drives - Conveying - Round Belting - 10mm, 12mm, 12.7mm, 1/2" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 80 EC Series
Overview:

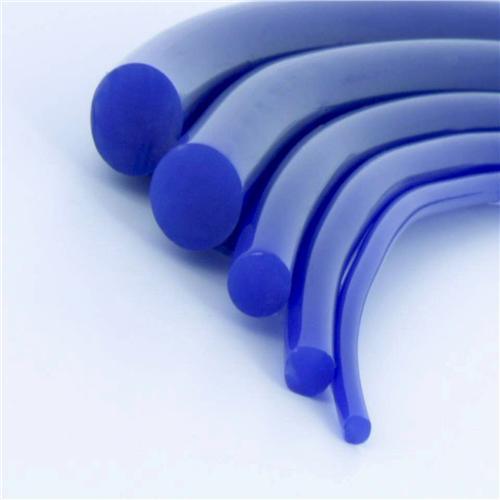

  • Eagle Blue 80 EC Non-Reinforced Round Belting is made of solid polyurethane designed specifically for direct food contact within the framework defined by the Regulation 1935/2004/EC. Also offers excellent abrasion resistance and high elasticity. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Blue 80 EC Non-Reinforced Round Belting is Fenner Drives' latest addition to the already stellar Eagle line. This Eagle premium belt is suitable for repeat use direct food contact at temperatures up to 40 deg C (104 deg. F) with all food types having a pH of greater than 4.5.

    Best Suited For: Light duty conveying applications involving direct food contact.

    Independently certified to meet the requirements of European Regulation 10/2011 (and the legislation which it replaces; Commission Directive 2002/72/EC) within the framework defined by the Regulation 1935/2004/EC (27/10/2004) relating to plastic materials and articles intended to come into direct contact with foodstuffs.

    When used in a range of "typical" process environments, Eagle EC belting will not allow components to migrate into food in quantities that could endanger human health, change the composition of the food in an unacceptable way or deteriorate the taste and smell of foodstuffs.

  • 80 Shore A durometer polyurethane belting
  • Eagle premium belting for repeated direct food contact
  • Independently tested and verified to meet FDA standards for direct food contact
  • For repeat use food contact at temps up to 40 deg. C with all types having a pH greater than 4.5.
  • Solid polyurethane construction


    • Produced in accordance with Good Manufacturing Practice (GMP) standards with exacting quality control, Eagle EC Belting is of such dimensional consistency sanitary conveyor system performance and reliability is improved.

    Eagle Blue EC Non-Reinforced Round Belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 8mm, 9.5mm
Reinforcement: None Color: Blue
Compliancy: EC Food Safety, FDA, REACH, RoHS Durometer: 80A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928008 Eagle Blue 80 EC --- 10mm 2.76" 70mm 3.7 16.4 5.8 25.6 7.7 34.1 9.6 42.6 0.059 lbs 0.088 kg
4927008 Eagle Clear 80 EC --- 10mm 2.76" 70mm 3.7 16.4 5.8 25.6 7.7 34.1 9.6 42.6 0.059 lbs 0.088 kg
L04OP8010M Eagle Opaque 80 --- 10mm 2.76" 70mm 5.1 22.9 8.8 39 12.2 54.5 15.4 68.6 0.064 lbs 0.096 kg
L04OG8510M Eagle Orange 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04C8510M Eagle Clear 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04BL8510M Eagle Blue 85 --- 10mm 3.15" 80mm 4.8 21.4 7.4 33 9.9 44 12.2 54.2 0.063lbs 0.094 kg
L04G8910MS Eagle Green 89 --- 10mm 3.54" 90mm 8 35.4 13.0 58.2 18 79.9 22.4 99.8 0.063lbs 0.093 kg
4905310 Eagle Green 89 Textured --- 10mm 3.54" 90mm 5.8 25.8 9.5 42.3 13.1 58.1 16.3 72.5 0.063 lbs 0.093 kg
L04R9010M Eagle Red 90 --- 10mm 3.94" 100mm 26.3 116.9 37.9 168.4 47.6 211.9 55.7 248 0.064 lbs 0.095 kg
L04QR8510M Eagle Red 85 QC --- 10 x 3.8mm* 3.15" 80mm 2.1 9.3 3.2 14.4 4.3 19.3 5.3 23.8 0.054 lbs 0.081 kg
L04OG8512M Eagle Orange 85 --- 12mm 3.78" 96mm 6.9 30.8 10.7 47.5 14.2 63.3 17.5 78 0.091 lbs 0.136 kg
L04C8512M Eagle Clear 85 --- 12mm 3.78" 96mm 6.9 30.8 10.7 47.5 14.2 63.3 17.5 78 0.091 lbs 0.136 kg
L04G8912MS Eagle Green 89 --- 12mm 4.25" 108mm 11.5 51.2 18.9 84.1 26 115.5 32.4 144.3 0.09 lbs 0.135 kg
4905312 Eagle Green 89 Textured --- 12mm 4.25" 108mm 8.4 37.3 13.8 61.2 18.9 84.1 23.6 105.1 0.091 lbs 0.135 kg
L04R9012M Eagle Red 90 --- 12mm 4.72" 120mm 37.8 168.4 54.5 242.5 68.6 305.2 80.3 357.2 0.092 lbs 0.137 kg
4941105 Eagle Blue 80 MD 1/2" 12.7mm 3.5" 89mm 5.4 23.9 8.4 37.3 11.2 49.7 13.8 61.6 0.095 lbs 0.142 kg
1032016 Eagle Orange 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 16 71 19.6 87.4 0.102 lbs 0.152 kg
4908024 Eagle Clear 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 16 71 19.6 87.4 0.102 lbs 0.152 kg
4940026 Eagle Red 90 1/2" 12.7mm 5" 127mm 42.4 188.6 61.1 271.7 76.9 342 90 400.2 0.103 lbs 0.153 kg
4907024 Eagle Clear 95 1/2" 12.7mm 5" 127mm 14.5 64.6 21.6 95.9 27.7 123.1 32.9 146.4 0.105 lbs 0.156 kg
4934024 Eagle Clear 85 QC .500 x .205"* --- 4" 102mm 3.3 14.5 5.1 22.5 6.8 30.2 8.4 37.2 0.085 lbs 0.126 kg
4934026 Eagle Yellow 85 QC .500 x .205"* --- 4" 102mm 3.3 14.5 5.1 22.5 6.8 30.2 8.4 37.2 0.085 lbs 0.126 kg
L04BL8512-7 Eagle Blue 85 1/2" 12.7mm 4" 102mm 7.8 34.5 12 53.2 15.9 70.9 19.6 87.4 0.102 lbs 0.152 kg
L04CON10S QC Connectors 20/pack (Use for 3/8" and 10mm)
L04CON13S QC Connectors 20/pack (Use for 1/2" and 12-13mm)

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
