4907012 by Fenner Drives | Eagle 95 Round Belting | 1/4" x 6.3mm Diameter | Non-Reinforced | Clear | 100ft
Fenner Drives

4907012 by Fenner Drives | Eagle 95 Round Belting | 1/4" x 6.3mm Diameter | Non-Reinforced | Clear | 100ft

Sale price$223.44
Fenner Drives - Conveying - Round Belting - 6mm, 1/4" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 95 Series
Overview:

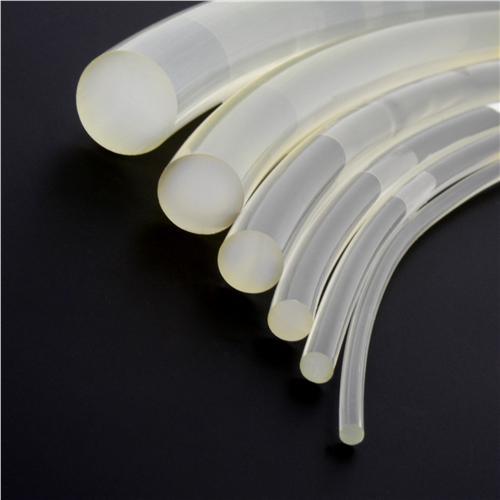

  • Eagle Clear 95 Non-Reinforced Round Belting is constructed of solid polyurethane with a 95 Shore A durometer that provides excellent abrasion resistance, high elasticity, and is also self-tensioning. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Clear 95 Non-Reinforced Round Belts offer a simple and practical option for your conveying needs. Made from a highly elastic, 95 Shore A durometer polyurethane. Due to their highly elastic properties, these belts are installed preloaded and require no take-up or tensioning mechanisms.

    Best Suited For: An all-purpose, highly versatile non-reinforced polyurethane belt for virtually any light to medium duty conveying application, requiring a round profile.

  • Independently tested and verified to meet FDA standards for direct food contact
  • Solid polyurethane construction
  • 95 Shore A durometer polyurethane belting
  • REACH and RoHS 2002/95/EC Directive compliant
  • High elasticity; no take-ups required


    • The proven workhorses! Eagle Clear 95 Non-Reinforced Round belts are the proven workhorses for material transfer and light-duty power transmission applications.

    Precise parameters and exacting quality standards result in a belt of such dimensional consistency that it maintains constant speed, which improves the performance of your conveyor system and provides smoother power transmission or motion transfer.

    Eagle Clear Non-Reinforced Round belts are easily welded endless in the field with a Fenner Drives Butt Welding Kit.


SPECIFICATIONS

Profile Shape: Round Profile Size: 1/2", 1/4", 1/8", 12.5mm, 3/16", 3/32", 3/8", 5/16", 6.3mm, 9.5mm
Reinforcement: None Color: Clear
Compliancy: FDA, REACH, RoHS Durometer: 95A
Material: Polyurethane Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928004 Eagle Blue 80 EC --- 6mm 1.65" 42mm 1.3 5.9 2.1 9.1 2.8 12.3 3.4 15.2 0.021 lbs 0.032 kg
4927004 Eagle Clear 80 EC --- 6mm 1.65" 42mm 1.3 5.9 2.1 9.1 2.8 12.3 3.4 15.2 0.021 lbs 0.032 kg
L04OP806M Eagle Opaque 80 --- 6mm 1.65" 42mm 1.9 8.2 3.2 14 4.4 19.6 5.6 24.7 0.023 lbs 0.034 kg
L04OG856M Eagle Orange 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.8 3.5 15.8 4.4 19.4 0.023 lbs 0.034 kg
L04C856M Eagle Clear 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.8 3.5 15.8 4.4 19.4 0.023 lbs 0.034 kg
L04BL856M Eagle Blue 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.9 3.6 15.8 4.4 19.5 0.023 lbs 0.034 kg
4905406 Eagle Green 89 --- 6mm 2.13" 54mm 2.9 12.8 4.7 21 6.5 28.9 8.1 36.1 0.023 lbs 0.034 kg
4905306 Eagle Green 89 Textured --- 6mm 2.13" 54mm 2.1 9.3 3.4 15.3 4.7 21 5.9 26.2 0.023 lbs 0.034 kg
L04QC856M Eagle Clear 85 QC --- 6mm x 2.5mm* 1.89" 48mm 0.7 3.2 1.1 5 1.5 6.7 1.9 8.3 0.019 lbs 0.028 kg
L04QR856M Eagle Red 85 QC --- 6mm x 2.5mm* 1.89" 48mm 0.7 3.2 1.1 5 1.5 6.7 1.9 8.3 0.019 lbs 0.028 kg
4941101 Eagle Blue 80 MD 1/4" 6.3mm 1.75" 44mm 1.3 6 2.1 9.2 2.8 12.3 3.4 15.3 0.024 lbs 0.035 kg
4940003 Eagle Opaque 80 1/4" 6.3mm 1.75" 44mm 2.1 9.2 3.5 15.7 4.9 22 6.2 27.7 0.026 lbs 0.039 kg
1032008 Eagle Orange 85 1/4" 6.3mm 2" 51mm 1.9 8.6 3 13.3 4 17.7 4.9 21.9 0.026 lbs 0.038 kg
4908012 Eagle Clear 85 1/4" 6.3mm 2" 51mm 1.9 8.6 3 13.3 4 17.7 4.9 21.9 0.026 lbs 0.038 kg
4940023 Eagle Red 90 1/4" 6.3mm 2.5" 64mm 10.6 47.2 15.3 67.9 19.2 85.5 22.5 100 0.026 lbs 0.038 kg
4907012 Eagle Blue 80 MD 1/4" 6.3mm 2.5" 64mm 3.6 16.1 5.4 24 6.9 30.8 8.2 36.6 0.026 lbs 0.039 kg
4934012 Eagle Clear 85 QC .250 x .098"* --- 2" 51mm 0.8 3.7 1.3 5.7 1.7 7.7 2.1 9.5 0.022 lbs 0.032 kg
4934022 Eagle Yellow 85 QC .250 x .098"* --- 2" 51mm 0.8 3.7 1.3 5.7 1.7 7.7 2.1 9.5 0.022 lbs 0.032 kg
4928005 Eagle Blue 80 EC 1/4" 6.3mm 1.74" 44mm 1.5 6.6 2.3 10.2 3.1 13.7 3.8 17 0.023 lbs 0.035 kg
L04CON6S QC Connectors 25/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
