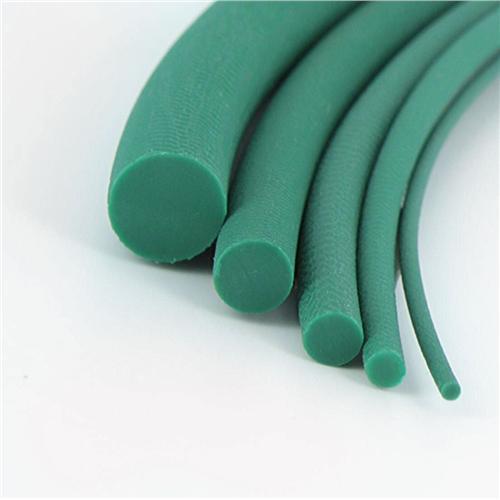

4905306 by Fenner Drives | Eagle 89 Textured Round Belting | 6mm Diameter | Non-Reinforced | Green | 100ft
Fenner Drives

4905306 by Fenner Drives | Eagle 89 Textured Round Belting | 6mm Diameter | Non-Reinforced | Green | 100ft

Sale price$223.44
Fenner Drives - Conveying - Round Belting - 6mm, 1/4" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:
  • Eagle Green 89 Non-Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer that provides excellent abrasion resistance. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Non-Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. Eagle Green 89 Non-Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of friction) is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Superior heat and water resistance
  • No take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Non-Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Reinforcement: None Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature: Textured
Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
4928004 Eagle Blue 80 EC --- 6mm 1.65" 42mm 1.3 5.9 2.1 9.1 2.8 12.3 3.4 15.2 0.021 lbs 0.032 kg
4927004 Eagle Clear 80 EC --- 6mm 1.65" 42mm 1.3 5.9 2.1 9.1 2.8 12.3 3.4 15.2 0.021 lbs 0.032 kg
L04OP806M Eagle Opaque 80 --- 6mm 1.65" 42mm 1.9 8.2 3.2 14 4.4 19.6 5.6 24.7 0.023 lbs 0.034 kg
L04OG856M Eagle Orange 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.8 3.5 15.8 4.4 19.4 0.023 lbs 0.034 kg
L04C856M Eagle Clear 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.8 3.5 15.8 4.4 19.4 0.023 lbs 0.034 kg
L04BL856M Eagle Blue 85 --- 6mm 1.89" 48mm 1.7 7.7 2.7 11.9 3.6 15.8 4.4 19.5 0.023 lbs 0.034 kg
4905406 Eagle Green 89 --- 6mm 2.13" 54mm 2.9 12.8 4.7 21 6.5 28.9 8.1 36.1 0.023 lbs 0.034 kg
4905306 Eagle Green 89 Textured --- 6mm 2.13" 54mm 2.1 9.3 3.4 15.3 4.7 21 5.9 26.2 0.023 lbs 0.034 kg
L04QC856M Eagle Clear 85 QC --- 6mm x 2.5mm* 1.89" 48mm 0.7 3.2 1.1 5 1.5 6.7 1.9 8.3 0.019 lbs 0.028 kg
L04QR856M Eagle Red 85 QC --- 6mm x 2.5mm* 1.89" 48mm 0.7 3.2 1.1 5 1.5 6.7 1.9 8.3 0.019 lbs 0.028 kg
4941101 Eagle Blue 80 MD 1/4" 6.3mm 1.75" 44mm 1.3 6 2.1 9.2 2.8 12.3 3.4 15.3 0.024 lbs 0.035 kg
4940003 Eagle Opaque 80 1/4" 6.3mm 1.75" 44mm 2.1 9.2 3.5 15.7 4.9 22 6.2 27.7 0.026 lbs 0.039 kg
1032008 Eagle Orange 85 1/4" 6.3mm 2" 51mm 1.9 8.6 3 13.3 4 17.7 4.9 21.9 0.026 lbs 0.038 kg
4908012 Eagle Clear 85 1/4" 6.3mm 2" 51mm 1.9 8.6 3 13.3 4 17.7 4.9 21.9 0.026 lbs 0.038 kg
4940023 Eagle Red 90 1/4" 6.3mm 2.5" 64mm 10.6 47.2 15.3 67.9 19.2 85.5 22.5 100 0.026 lbs 0.038 kg
4907012 Eagle Blue 80 MD 1/4" 6.3mm 2.5" 64mm 3.6 16.1 5.4 24 6.9 30.8 8.2 36.6 0.026 lbs 0.039 kg
4934012 Eagle Clear 85 QC .250 x .098"* --- 2" 51mm 0.8 3.7 1.3 5.7 1.7 7.7 2.1 9.5 0.022 lbs 0.032 kg
4934022 Eagle Yellow 85 QC .250 x .098"* --- 2" 51mm 0.8 3.7 1.3 5.7 1.7 7.7 2.1 9.5 0.022 lbs 0.032 kg
4928005 Eagle Blue 80 EC 1/4" 6.3mm 1.74" 44mm 1.5 6.6 2.3 10.2 3.1 13.7 3.8 17 0.023 lbs 0.035 kg
L04CON6S QC Connectors 25/pack

* QC dimensions are shown O.D x I.D. (O.D. is the outer diameter of the belt. I.D. is the inner diameter of the belt.) Dimensions are for reference only.
