4905302 by Fenner Drives | Eagle 89 Textured Round Belting | 2mm Diameter | Non-Reinforced | Green | 100ft

4905302 by Fenner Drives | Eagle 89 Textured Round Belting | 2mm Diameter | Non-Reinforced | Green | 100ft

Sale price$101.75
Quantity Price Each
15–29 $96.66
30–59 $91.58
60+ $81.40
Discounts applied at checkout.
Fenner Drives - Conveying - Round Belting - 2mm, 3/32", 3mm, 1/8" Round Cross Sections - Non-Reinforced

Package Quantity: 100 FT

Product Data:

Brand:
  • Eagle
Series:
  • 89 Series
Overview:

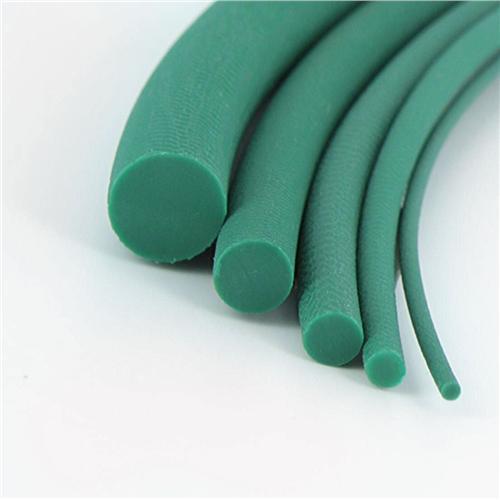

  • Eagle Green 89 Non-Reinforced Textured Round Belting constructed of polyurethane with an 89 Shore A durometer that provides excellent abrasion resistance. A key feature of this belt is its textured surface, which lowers its surface coefficient of friction. Packaged in 100'/30.5m lengths.
Description:
  • Eagle Green 89 Non-Reinforced Textured Round Belts' harder durometer and textured surface combine to lower the CoF of this belt. Eagle Green 89 Non-Reinforced Textured Round belts also have superior heat and water resistant properties making it an ideal choice for an application that requires frequent wash-downs.

    Best Suited For: Long conveyor lengths, heavier conveyed loads, or medium-duty power transmission applications, where a lower surface CoF (coefficient of friction) is desirable in a round belt profile.

  • 89 shore A durometer
  • Textured surface for lower surface CoF
  • Superior heat and water resistance
  • No take-ups required
  • REACH and RoHS 2002/95/EC Directive compliant


    • Eagle Green 89 Non-Reinforced Textured Round Belts are easily welded endless in the field with either a Fenner Drives Butt Welding Kit.

SPECIFICATIONS

Profile Shape: Round Profile Size: 10mm, 12mm, 15mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
Reinforcement: None Color: Green
Compliancy: REACH, RoHS Durometer: 89A
Material: Polyurethane Special Feature: Textured Package Length: 100'/30.5m

Part Number Material & Color Dimensions Ø Minimum Pulley Ø Working Load @ Percent Tension Weight
4% 6% 8% 10%
in mm in mm lbs N lbs N lbs N lbs N lbs/ft kg/m
L04OP802M Eagle Opaque 80 --- 2mm 0.63" 16mm 0.2 0.9 0.3 1.3 0.4 1.8 0.5 2.2 0.003 lbs 0.004 kg
L04OG852M Eagle Orange 85 --- 2mm 0.63" 16mm 0.2 0.9 0.3 1.3 0.4 1.8 0.5 2.2 0.003 lbs 0.004 kg
L04C852M Eagle Clear 85 --- 2mm 0.63" 16mm 0.2 0.9 0.3 1.3 0.4 1.8 0.5 2.2 0.003 lbs 0.004 kg
4905402 Eagle Green 89 --- 2mm 0.71" 18mm 0.3 1.4 0.5 2.4 0.7 3.2 0.9 4 0.003 lbs 0.004 kg
4905302 Eagle Green 89 Textured --- 2mm 0.71" 18mm 0.2 1 0.4 1.7 0.5 2.3 0.7 2.9 0.003 lbs 0.004 kg
4940017 Eagle Red 90 --- 2mm 0.79" 20mm 1.1 4.7 1.5 6.8 1.9 8.5 2.2 10 0.003 lbs 0.004 kg
1032003 Eagle Orange 85 3/32" --- 0.75" 19mm 0.3 1.2 0.4 1.9 0.6 2.5 0.7 3.1 0.004 lbs 0.005 kg
4908003 Eagle Clear 85 3/32" --- 0.75" 19mm 0.3 1.2 0.4 1.9 0.6 2.5 0.7 3.1 0.004 lbs 0.005 kg
4907003 Eagle Clear 95 3/32" --- 0.94" 24mm 0.5 2.3 0.8 3.4 1 4.3 1.2 5.1 0.004 lbs 0.005 kg
1032004 Eagle Orange 85 1/8" --- 1" 25mm 0.5 2.2 0.7 3.3 1 4.4 1.2 5.5 0.006 lbs 0.01 kg
4908006 Eagle Clear 85 1/8" --- 1" 25mm 0.5 2.2 0.7 3.3 1 4.4 1.2 5.5 0.006 lbs 0.01 kg
4907006 Eagle Clear 95 1/8" --- 1.25" 32mm 0.9 4 1.3 6 1.7 7.7 2.1 9.1 0.007 lbs 0.01 kg
4928001 Eagle Blue 80 EC --- 3mm 0.83" 21mm 0.4 1.7 0.6 2.5 0.8 3.5 1 4.3 0.005 lbs 0.008 kg
4927001 Eagle Cear 80 EC --- 3mm 0.83" 21mm 0.4 1.7 0.6 2.5 0.8 3.5 1 4.3 0.005 lbs 0.008 kg
L04OP803M Eagle Opaque 80 --- 3mm 0.83" 21mm 0.5 2.1 0.8 3.5 1.1 4.9 1.4 6.2 0.006 lbs 0.009 kg
L04OG853M Eagle Orange 85 --- 3mm 0.94" 24mm 0.4 1.9 0.7 3 0.9 4 1.1 4.9 0.006 lbs 0.009 kg
L04C853M Eagle Clear 85 --- 3mm 0.94" 24mm 0.4 1.9 0.7 3 0.9 4 1.1 4.9 0.006 lbs 0.009 kg
L04BL853M Eagle Blue 85 --- 3mm 0.94" 24mm 0.4 1.9 0.7 3 0.9 4 1.1 4.9 0.006 lbs 0.009 kg
L04G893MS Eagle Green 89 --- 3mm 1.06" 27mm 0.7 3.2 1.2 5.2 1.6 7.2 2 9 0.006 lbs 0.009 kg
4905303 Eagle Green 89 Textured --- 3mm 1.06" 27mm 0.5 2.3 0.9 3.8 1.2 5.2 1.5 6.5 0.006 lbs 0.009 kg
4940020 Eagle Red 90 --- 3mm 1.18" 30mm 2.4 10.5 3.4 15.1 4.3 19 5 22.2 0.006 lbs 0.009 kg
