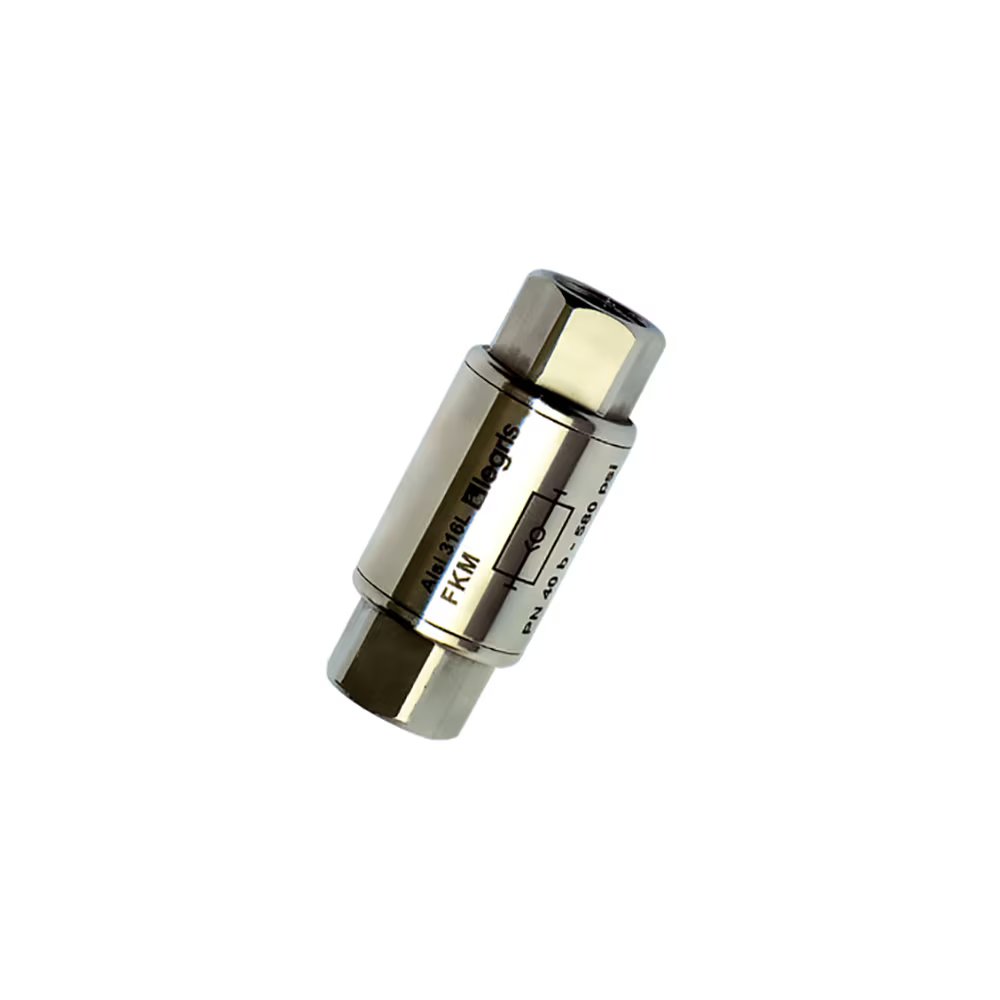

4895 18 18 by Parker | Legris Non-Return Valve | 3/8" Female NPT Thread | 67 mm Length | Straight | 316L Stainless Steel | Pack of 2

4895 18 18 by Parker | Legris Non-Return Valve | 3/8" Female NPT Thread | 67 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$290.45

by Parker Hannifin
Stainless Steel Non-Return Valves:4895 Non-Return Valve, Female NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $273.02
15–29 $246.88
30+ $217.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4895 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female NPT
  • 3/8in Female NPT
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: .5 to 40 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Mechanical robustness and reduced dimensions
  • Suitable for use with many chemicals or in corrosive environments
  • Flow direction symbol protects against incorrect installation
  • Smooth external surfaces contribute to equipment cleanliness
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: 316L Stainless Steel
  • Seal: FKM
  • Poppet: 316L Stainless Steel
  • Spring: 302 Stainless Steel
Part Number Diameter Nominal (DN) C F G L Kg
4895 11 11 10 mm 1/8" 17 mm 22 mm 50 mm .082 Kg
4895 14 14 10 mm 1/4" 17 mm 22 mm 54 mm .079 Kg
4895 18 18 15 mm 3/8" 22 mm 30 mm 67 mm .194 Kg
4895 22 22 15 mm 1/2" 24 mm 30 mm 77 mm .195 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
