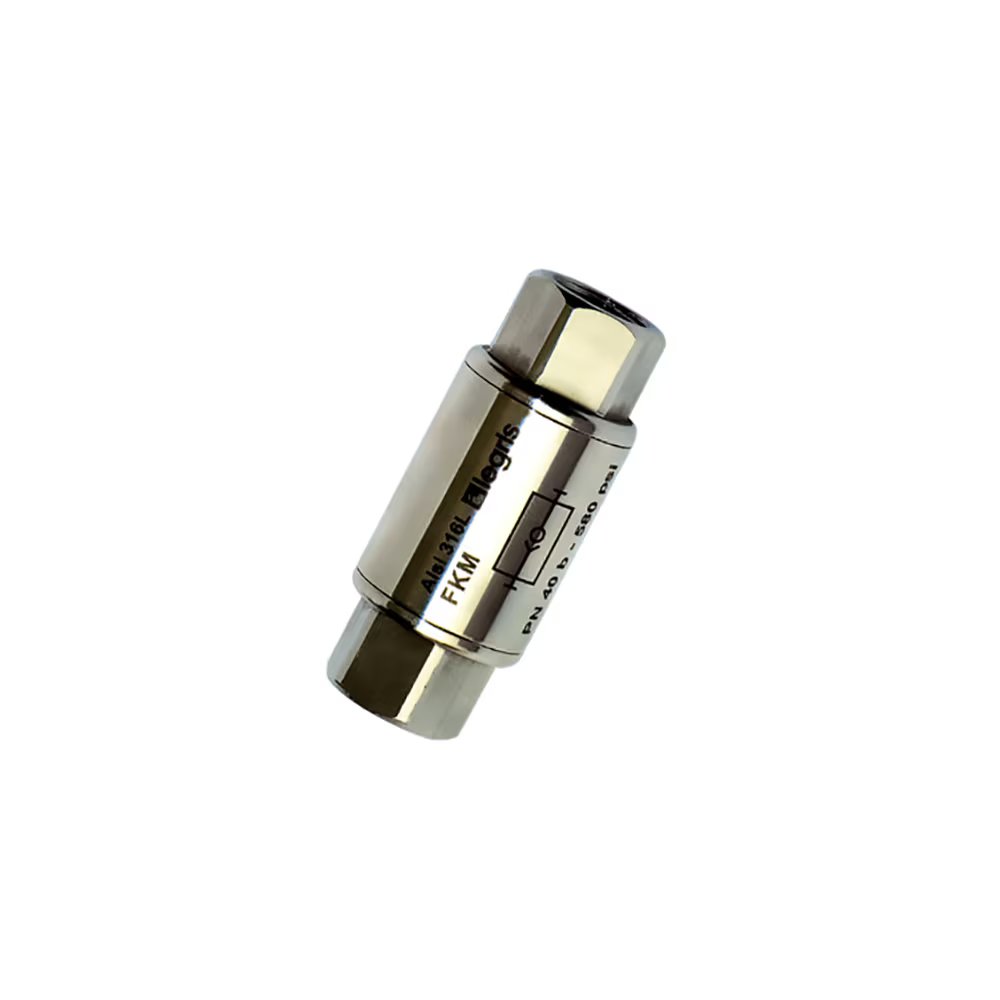

4895 11 11 by Parker | Legris Non-Return Valve | 1/8" Female NPT Thread | 50 mm Length | Straight | 316L Stainless Steel | Pack of 2

4895 11 11 by Parker | Legris Non-Return Valve | 1/8" Female NPT Thread | 50 mm Length | Straight | 316L Stainless Steel | Pack of 2

Sale price$254.21

by Parker Hannifin
Stainless Steel Non-Return Valves:4895 Non-Return Valve, Female NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
5–14 $238.96
15–29 $216.08
30+ $190.66
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4895 Series
Shape:

Straight

Ends Configuration:
  • 1/8in Female NPT
  • 1/8in Female NPT
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Many fluids
  • Working Pressure: .5 to 40 bar
  • Working Temperature: -20°C to +180°C
Advantages:
  • Mechanical robustness and reduced dimensions
  • Suitable for use with many chemicals or in corrosive environments
  • Flow direction symbol protects against incorrect installation
  • Smooth external surfaces contribute to equipment cleanliness
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
  • Body: 316L Stainless Steel
  • Seal: FKM
  • Poppet: 316L Stainless Steel
  • Spring: 302 Stainless Steel
Part Number Diameter Nominal (DN) C F G L Kg
4895 11 11 10 mm 1/8" 17 mm 22 mm 50 mm .082 Kg
4895 14 14 10 mm 1/4" 17 mm 22 mm 54 mm .079 Kg
4895 18 18 15 mm 3/8" 22 mm 30 mm 67 mm .194 Kg
4895 22 22 15 mm 1/2" 24 mm 30 mm 77 mm .195 Kg
