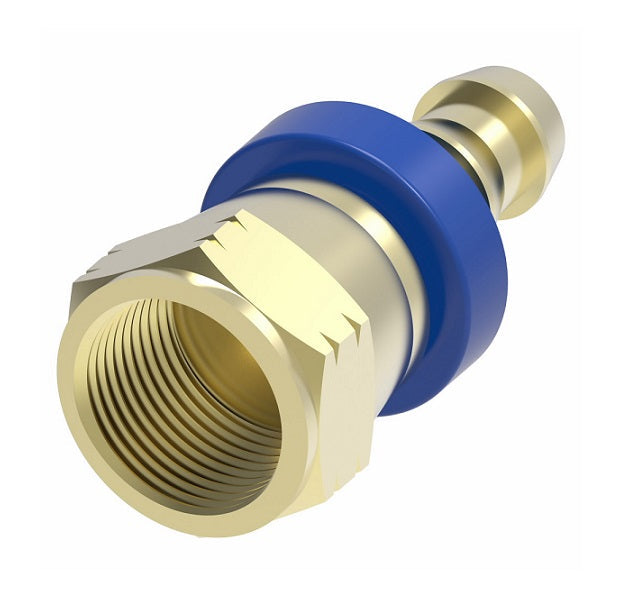

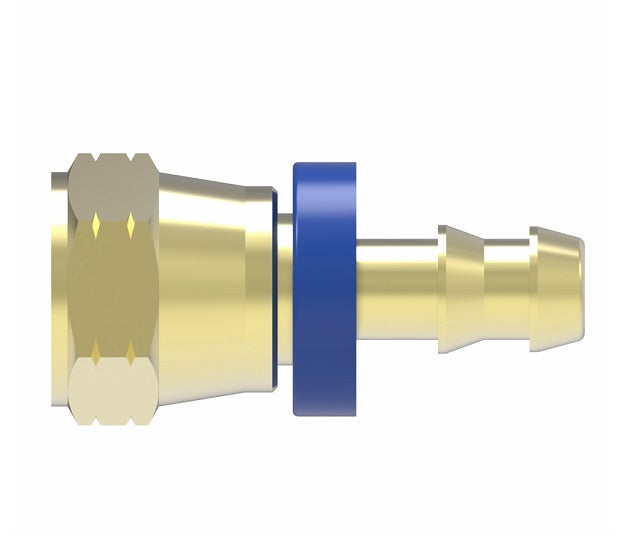

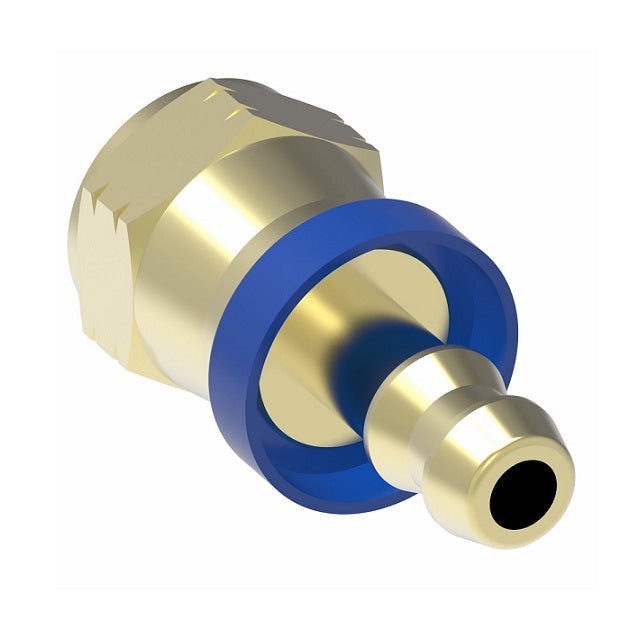

4797-8-6B Aeroquip by Danfoss | Female Pipe Universal Socketless Reusable Hose Fitting | -08 Female JIC (Also Couples w/ SAE 45° Flare) x -06 Push-On Hose Barb | Brass
4797-8-6B Aeroquip by Danfoss | Female Pipe Universal Socketless Reusable Hose Fitting | -08 Female JIC (Also Couples w/ SAE 45° Flare) x -06 Push-On Hose Barb | Brass
4797-8-6B Aeroquip by Danfoss | Female Pipe Universal Socketless Reusable Hose Fitting | -08 Female JIC (Also Couples w/ SAE 45° Flare) x -06 Push-On Hose Barb | Brass

4797-8-6B Aeroquip by Danfoss | Female Pipe Universal Socketless Reusable Hose Fitting | -08 Female JIC (Also Couples w/ SAE 45° Flare) x -06 Push-On Hose Barb | Brass

Sale price$20.45
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Technical Info:
Brass
Part Number 		Hose Size Thread A D EØ
4797-4B -04 7/16-20 1.55" 0.80" 0.17"
4797-5-4B -04 1/2-20 1.60" 0.84" 0.17"
4797-8-6B -06 3/4-16 1.89" 1.02" 0.30"
4797-8B -08 3/4-16 2.03" 1.02" 0.39"
4797-10B -10 7/8-14 2.68" 1.14" 0.48"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female JIC
  • 3/8in Push-On Hose Barb
  • 1/2in Female SAE 45 Flare
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
