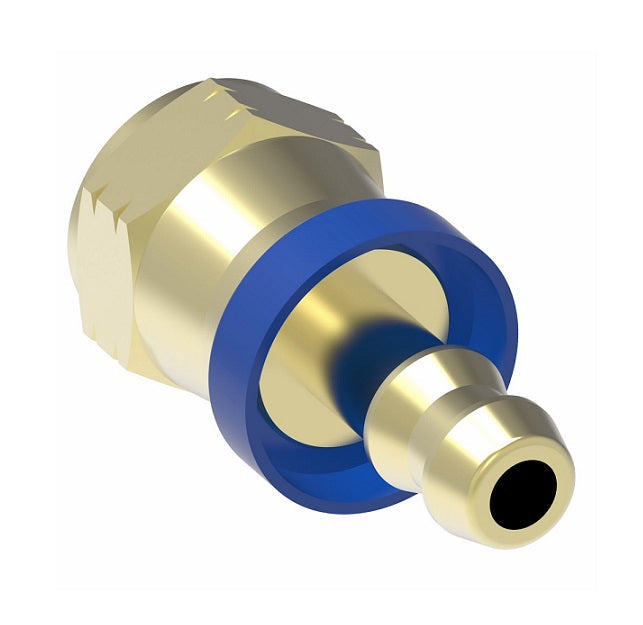

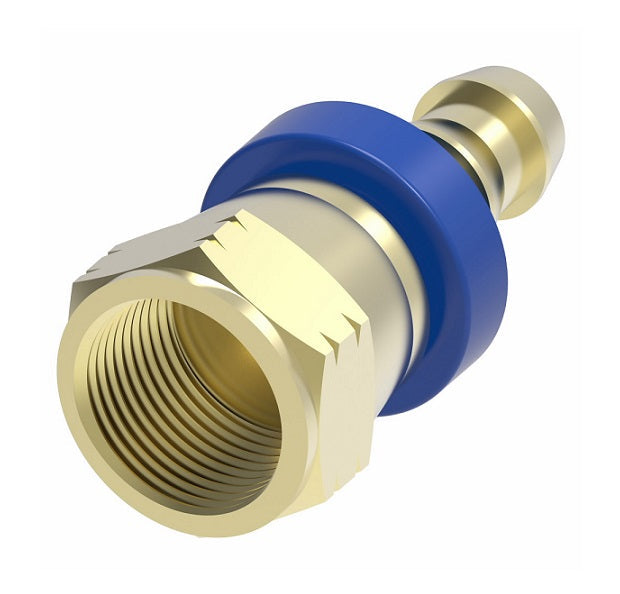

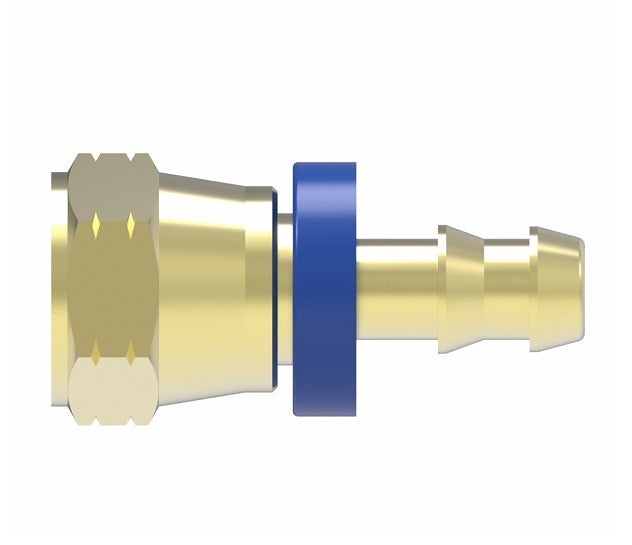

4797-4B Aeroquip by Danfoss | Female Universal Socketless Reusable Hose Fitting | -04 Female JIC (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Brass
4797-4B Aeroquip by Danfoss | Female Universal Socketless Reusable Hose Fitting | -04 Female JIC (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Brass
4797-4B Aeroquip by Danfoss | Female Universal Socketless Reusable Hose Fitting | -04 Female JIC (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Brass

4797-4B Aeroquip by Danfoss | Female Universal Socketless Reusable Hose Fitting | -04 Female JIC (Also Couples w/ SAE 45° Flare) x -04 Push-On Hose Barb | Brass

Minimum Order Quantity: 5 Units

Sale price$5.26

Aeroquip® by Danfoss
Socketless (Push-On Hose Barb) Reusable Hose Fitting - Male Pipe Universal - Straight

Male JIC also Couples with SAE 45° Flare.

Double notch in nut for Universal type identification for both SAE 45° and 37° (JIC) connections.

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
20–39 $4.94
40–79 $4.47
80+ $3.95
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female JIC
  • 1/4in Push-On Hose Barb
  • 1/4in Female SAE 45 Flare
Material(s):
  • Brass
Technical Info:
Brass
Part Number 		Hose Size Thread A D EØ
4797-4B -04 7/16-20 1.55" 0.80" 0.17"
4797-5-4B -04 1/2-20 1.60" 0.84" 0.17"
4797-8-6B -06 3/4-16 1.89" 1.02" 0.30"
4797-8B -08 3/4-16 2.03" 1.02" 0.39"
4797-10B -10 7/8-14 2.68" 1.14" 0.48"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
