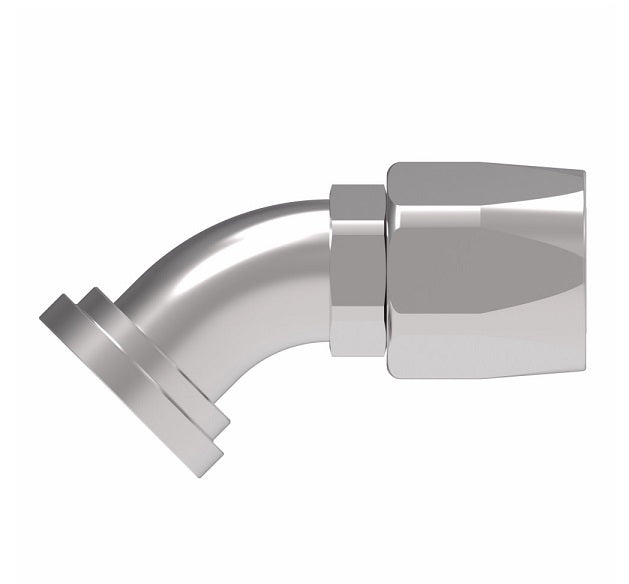

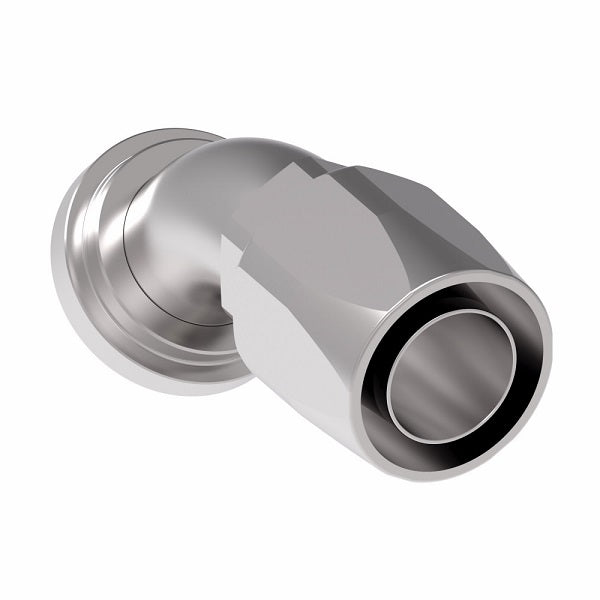

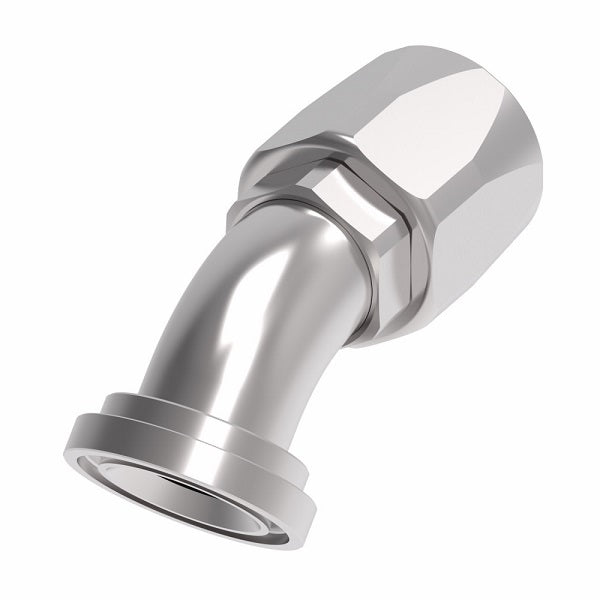

4777-20S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -20 Code 61 Split Flange x -20 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Brass & Steel Part Number |
Hose Size | Flange Head Diameter |
A | D | EØ | H |
| 4777-12S | - | -12 | 1.50" | 4.02" | 2.45" | 0.55" | 1.00" |
| 4777-16S | - | -16 | 1.75" | 3.80" | 2.53" | 0.82" | 1.12" |
| 4777-20S | - | -20 | 2.00" | 4.12" | 2.75" | 1.05" | 1.12" |
| 4777-24S | - | -24 | 2.38" | 4.38" | 2.92" | 1.28" | 1.12" |
| 4777-24-32S | - | -32 | 2.38" | 4.78" | 2.94" | 1.37" | 1.12" |
| 4777-32-24S | - | -24 | 2.81" | 4.38" | 2.92" | 1.28" | 1.12" |
| 4777-32S | - | -32 | 2.81" | 5.81" | 3.33" | 1.75" | 1.25" |
| 4777-40-32S | - | -32 | 3.31" | 5.22" | 3.38" | 1.75" | 1.30" |
| - | 39-4777-40 | -40 | - | - | - | - | - |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Compatible Series:
