4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel
4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel
4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

4777-16S Aeroquip by Danfoss | SAE Code 61 Split Flange 45° Elbow (SAE J518) 100R5 Reusable Hose Fitting | -16 Code 61 Split Flange x -16 Reusable Hose End | Steel

Sale price$130.42

Aeroquip® by Danfoss

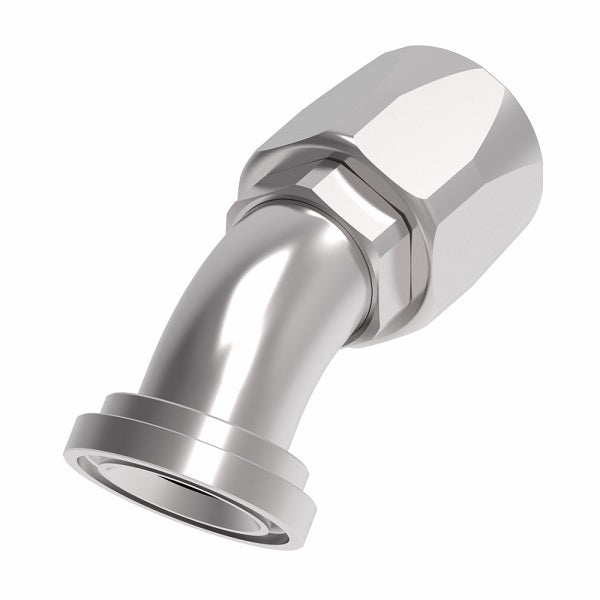

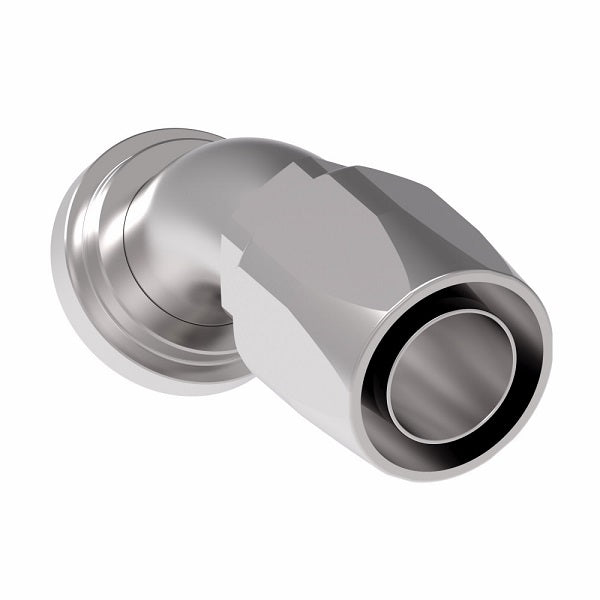

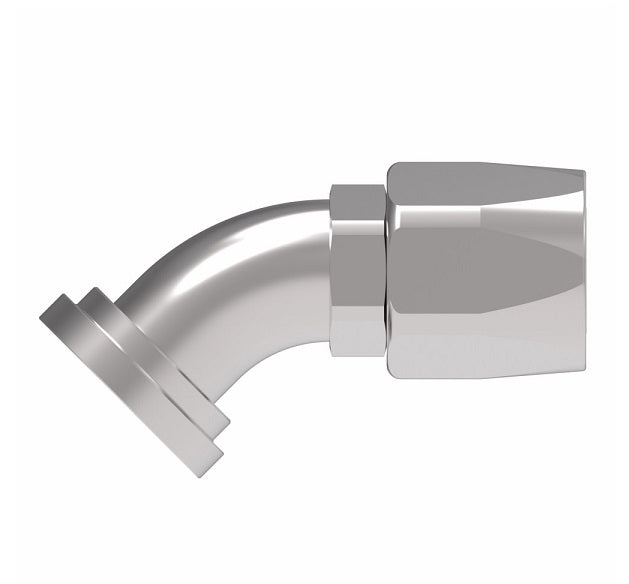

SAE 100R5 Style Reusable Hose Fitting - SAE Code 61 Split Flange (SAE J518) - 45° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
20–29 $122.59
30–59 $110.86
60+ $97.82
Discounts applied in cart/checkout.

Product Data:

Shape:

45 Degree

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Brass & Steel
Part Number 		Hose Size Flange Head
Diameter		 A D EØ H
4777-12S - -12 1.50" 4.02" 2.45" 0.55" 1.00"
4777-16S - -16 1.75" 3.80" 2.53" 0.82" 1.12"
4777-20S - -20 2.00" 4.12" 2.75" 1.05" 1.12"
4777-24S - -24 2.38" 4.38" 2.92" 1.28" 1.12"
4777-24-32S - -32 2.38" 4.78" 2.94" 1.37" 1.12"
4777-32-24S - -24 2.81" 4.38" 2.92" 1.28" 1.12"
4777-32S - -32 2.81" 5.81" 3.33" 1.75" 1.25"
4777-40-32S - -32 3.31" 5.22" 3.38" 1.75" 1.30"
- 39-4777-40 -40 - - - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
