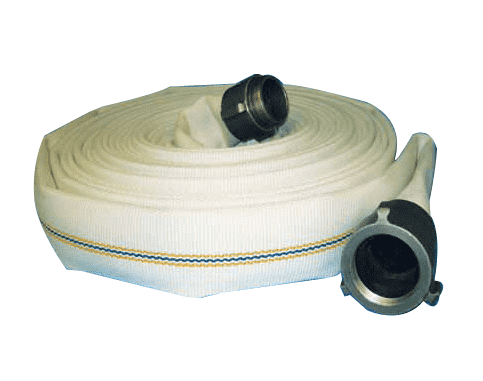

4735-0150-050ERNPS by Jason Industrial | 4735 Series | MSHA Fire Hose Assembly | 300 PSI Serv. Press. | 1-1/2" ID | NPS EXP Ring | White | 50ft

4735-0150-050ERNPS by Jason Industrial | 4735 Series | MSHA Fire Hose Assembly | 300 PSI Serv. Press. | 1-1/2" ID | NPS EXP Ring | White | 50ft

Sale price$291.79

Jason Industrial Inc. Hose - Water Hose - 4735 MSHA Fire Hose Assembly - White

Package Quantity: 50 FT

Buy More, Save More!
Quantity Price Each
5–14 $274.28
15–29 $248.02
30+ $218.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • 4735 Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 1.50in

SPECIFICATIONS

Application: Underground mining fire hose. SAE Rating: N/A
Other Ratings: MSHA rating 18-FHA08001 Tube: Chloroprene (CR)
Reinforcement: N/A Cover: Polyester
Temperature Range: -25 deg F (-32 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 300 PSI Test, MSHA #18-FHA08001
Other Features:
  • Meets MSHA rating 18-FHA08001, therefore resistant to fire.
  • Rolls flat for easy storage
  • Couplings are anodized aluminum M x F expansion ring with rocker lugs
  • 100% polyester jacket, which is free from defects, twists, knots and irregularities
Part Number I.D. Coupling Reinforcement Plies Service Pressure Test Pressure Vacuum @ 68 deg. F Weight Standard Length
in. mm PSI BAR PSI BAR inHg lb./ft. KG/m ft
Coupled
4735-0150-050ERNPS 1-1/2" 38.10mm Male NPS x Female NPS Expansion Ring with Rocker Lug N/A 300 PSI 20.68 BAR 900 PSI 62.04 BAR N/A 0.23 lb./ft. 0.34 KG/m 50ft
4735-0150-050ERNST 1-1/2" 38.10mm Male NST x Female NST Expansion Ring with Rocker Lug N/A 300 PSI 20.68 BAR 900 PSI 62.04 BAR N/A 0.23 lb./ft. 0.34 KG/m 50ft
4735-0150-100ERNPS 1-1/2" 38.10mm Male NPS x Female NPS Expansion Ring with Rocker Lug N/A 300 PSI 20.68 BAR 900 PSI 62.04 BAR N/A 0.23 lb./ft. 0.34 KG/m 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
