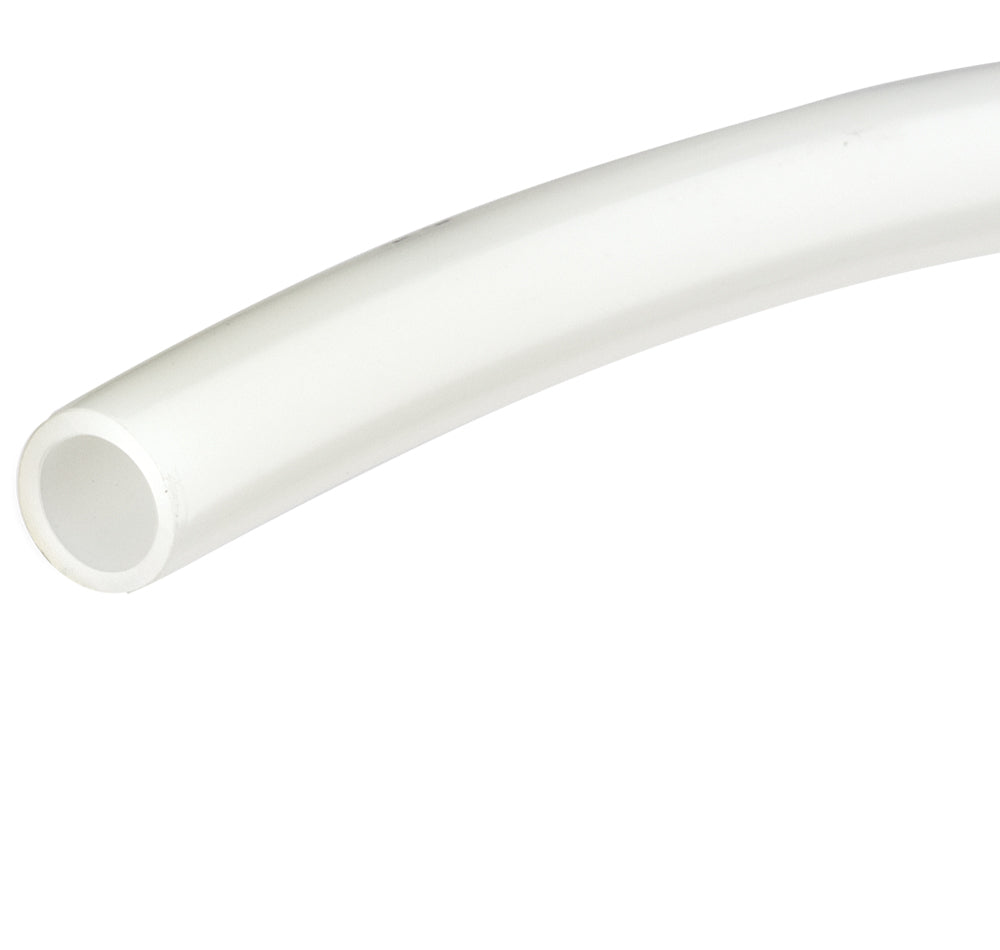

420N-MM10X100 Kuri-Tec by Kuriyama | 420N Series | Nylon 12 Metric Tubing | 8mm ID | 10mm OD | 1mm Wall Thickness | 100ft Length

420N-MM10X100 Kuri-Tec by Kuriyama | 420N Series | Nylon 12 Metric Tubing | 8mm ID | 10mm OD | 1mm Wall Thickness | 100ft Length

Minimum Order Quantity: 5 Units

Sale price$112.15

Kuri Tec® by Kuriyama
420N Series | Nylon 12 Tubing

Nylon construction provides high strength in a lightweight product. Compatible with many industrial chemicals and solvents.

Made in North America.

Package Quantity: 100 Foot

Buy More, Save More!
Quantity Price Each
20–29 $105.42
30–59 $95.33
60+ $84.11
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • 420N Series
Color(s):
  • White/Off-White

SPECIFICATIONS

Applications: Chemical transfer.
Lubrication and coolant transfer.
Paint supply lines.
Pneumatic and instrumentation lines.
Pneumatic tools.
Tube: Nylon 12 - natural color. In compliance with RoHS criteria.
Cover: - Service Temperature Range: -60°F (-51°C) to +200°F (+93°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Strong and Lightweight - Nylon construction provides high strength in a lightweight product.
  • Excellent Chemical Resistance - Compatible with many industrial chemicals and solvents.
  • High Heat Resistance - Heat resistant up to +200°F.
  • Low Moisture Absorption Rate - Helps eliminate cross contamination of the transferred materials, and instances of swelling which can shorten tubing life.
  • Resistant to Environmental Stress Cracking (ESC) - Highly resistant to the surface cracking caused by simultaneous exposure to stress and liquids.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number
100ft		 Part Number
500ft		 Nominal OD Nominal ID Nominal Wall Working
Pressure (PSI)
(mm) (in) (mm) (in) (mm) (in) at 70°F (20°C)
420N-MM04X100 420N-MM04X500 4.0mm 0.157" 2.7mm 0.106" 0.65mm 0.026" 350 PSI
420N-MM06X100 420N-MM06X500 6.0mm 0.236" 4.0mm 0.157" 1.0mm 0.039" 340 PSI
420N-MM08X100 420N-MM08X500 8.0mm 0.315" 6.0mm 0.236" 1.0mm 0.039" 250 PSI
420N-MM10X100 420N-MM10X500 10.0mm 0.394" 8.0mm 0.315" 1.0mm 0.039" 225 PSI
420N-MM12X100 420N-MM12X500 12.0mm 0.472" 10.0mm 0.394" 1.0mm 0.039" 200 PSI
