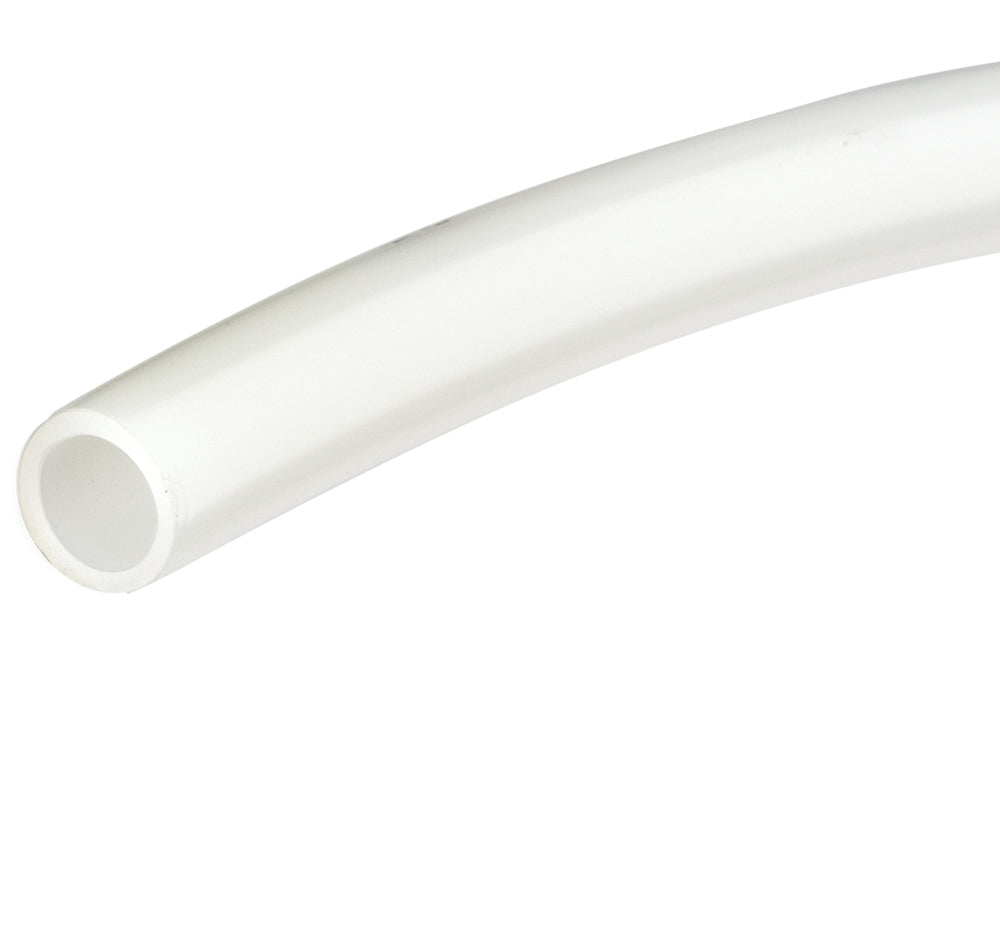

420N-MM08X500 Kuri-Tec by Kuriyama | 420N Series | Nylon 12 Metric Tubing | 6mm ID | 8mm OD | 1mm Wall Thickness | 500ft Length

$294.38

Kuri Tec® by Kuriyama
420N Series | Nylon 12 Tubing

Nylon construction provides high strength in a lightweight product. Compatible with many industrial chemicals and solvents.

Made in North America.

Package Quantity: 500 Foot

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Color(s):

Other Features:
Applications:	Chemical transfer. Lubrication and coolant transfer. Paint supply lines. Pneumatic and instrumentation lines. Pneumatic tools.
Tube:	Nylon 12 - natural color. In compliance with RoHS criteria.
Cover:	-	Service Temperature Range:	-60°F (-51°C) to +200°F (+93°C)
Specifications:	Phthalate Free RoHS
Strong and Lightweight - Nylon construction provides high strength in a lightweight product. Excellent Chemical Resistance - Compatible with many industrial chemicals and solvents. High Heat Resistance - Heat resistant up to +200°F. Low Moisture Absorption Rate - Helps eliminate cross contamination of the transferred materials, and instances of swelling which can shorten tubing life. Resistant to Environmental Stress Cracking (ESC) - Highly resistant to the surface cracking caused by simultaneous exposure to stress and liquids. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Part Number 100ft	Part Number 500ft	Nominal OD		Nominal ID		Nominal Wall		Working Pressure (PSI)
Part Number 100ft	Part Number 500ft	(mm)	(in)	(mm)	(in)	(mm)	(in)	at 70°F (20°C)
420N-MM04X100	420N-MM04X500	4.0mm	0.157"	2.7mm	0.106"	0.65mm	0.026"	350 PSI
420N-MM06X100	420N-MM06X500	6.0mm	0.236"	4.0mm	0.157"	1.0mm	0.039"	340 PSI
420N-MM08X100	420N-MM08X500	8.0mm	0.315"	6.0mm	0.236"	1.0mm	0.039"	250 PSI
420N-MM10X100	420N-MM10X500	10.0mm	0.394"	8.0mm	0.315"	1.0mm	0.039"	225 PSI
420N-MM12X100	420N-MM12X500	12.0mm	0.472"	10.0mm	0.394"	1.0mm	0.039"	200 PSI
