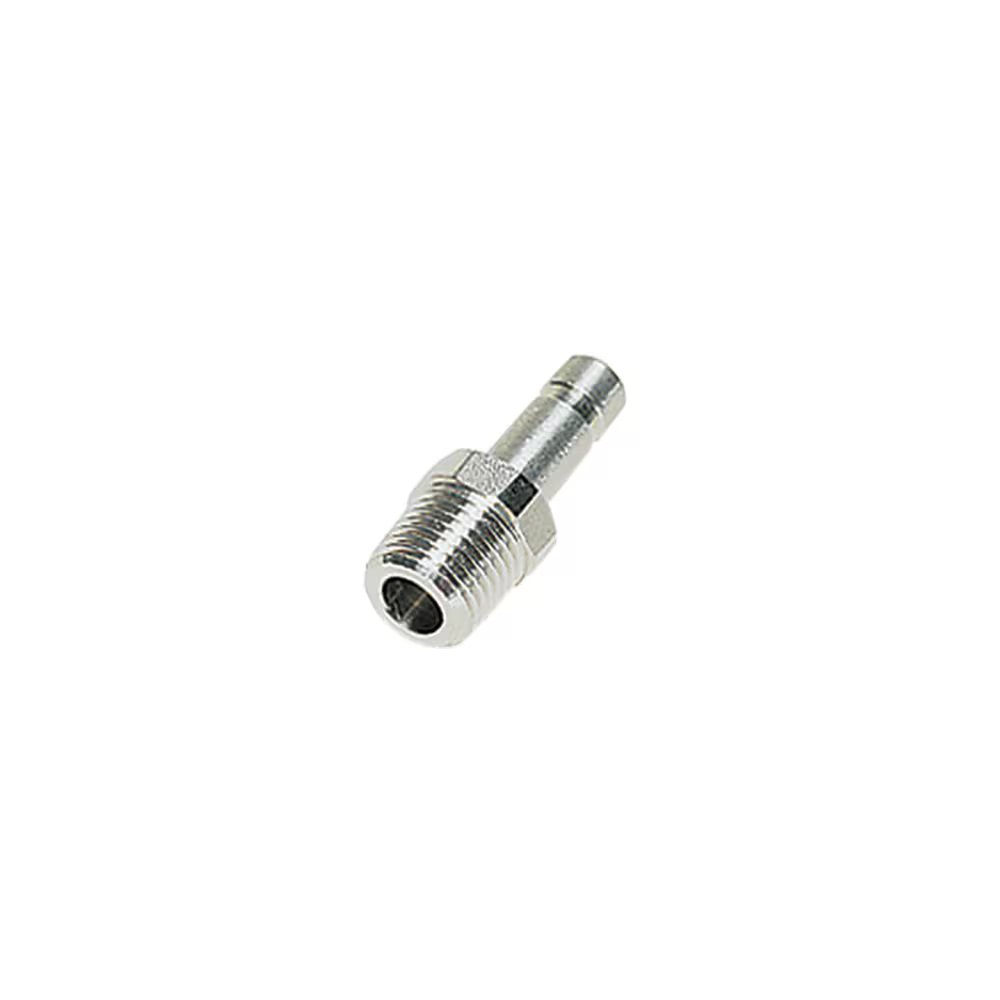

3821 06 14 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/4" Male NPT Thread | 14 mm Hex | Straight | 316L Stainless Steel | Pack of 2

3821 06 14 by Parker | Legris Stud Standpipe | 6 mm Tube Size x 1/4" Male NPT Thread | 14 mm Hex | Straight | 316L Stainless Steel | Pack of 2

Sale price$105.21

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3821 Stud Standpipe, Male NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–29 $98.90
30–59 $89.43
60+ $78.91
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3821 Series
Shape:

Straight

Ends Configuration:
  • 6mm Tube Stem
  • 1/4in Male NPT
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F H Kg
3821 04 11 4 mm 1/8" 10 mm 21 mm .006 Kg
3821 06 11 6 mm 1/8" 10 mm 23 mm .007 Kg
3821 06 14 6 mm 1/4" 14 mm 24 mm .016 Kg
3821 08 11 8 mm 1/8" 14 mm 24 mm .008 Kg
3821 08 14 8 mm 1/4" 14 mm 25 mm .016 Kg
3821 10 14 10 mm 1/4" 14 mm 30 mm .018 Kg
3821 10 18 10 mm 3/8" 17 mm 30 mm .010 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
