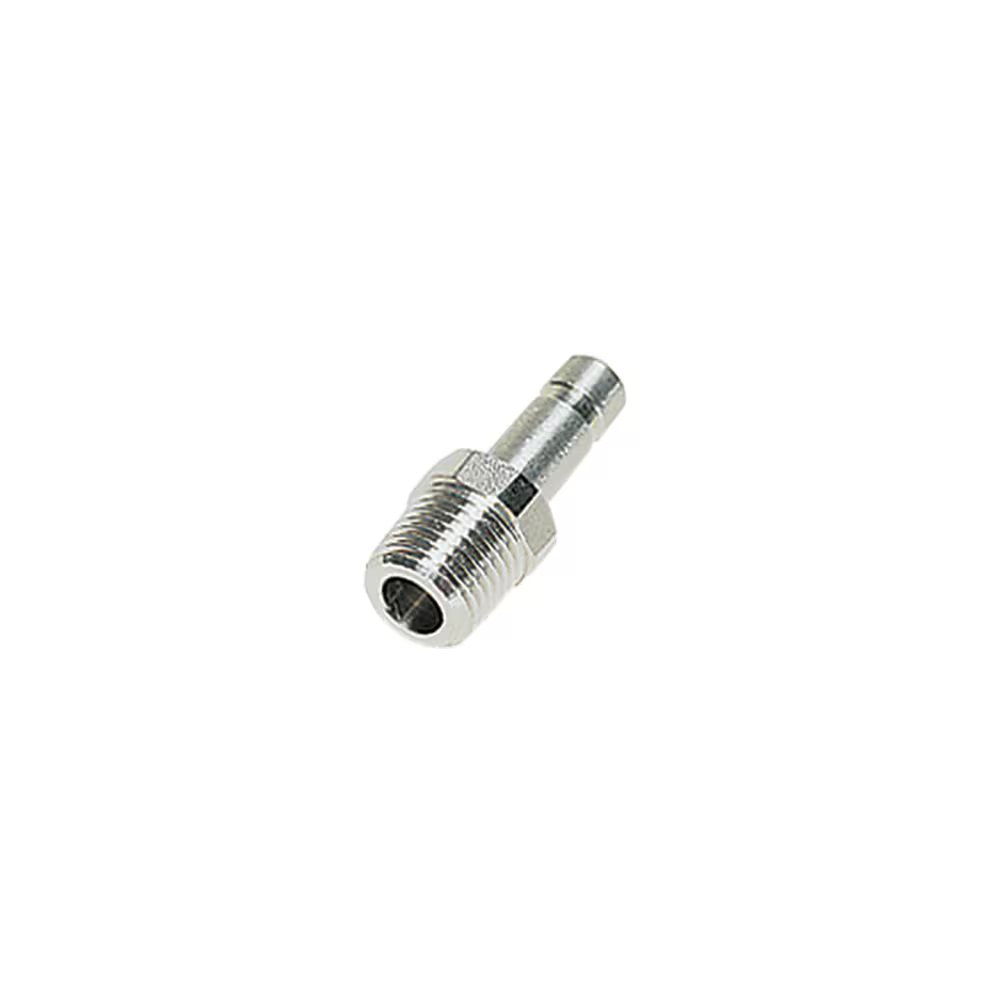

3821 04 11 by Parker | Legris Stud Standpipe | 4 mm Tube Size x 1/8" Male NPT Thread | 10 mm Hex | Straight | 316L Stainless Steel | Pack of 2

3821 04 11 by Parker | Legris Stud Standpipe | 4 mm Tube Size x 1/8" Male NPT Thread | 10 mm Hex | Straight | 316L Stainless Steel | Pack of 2

Sale price$49.01

by Parker Hannifin
LF 3800 Push-In Fittings / Stud Fittings:3821 Stud Standpipe, Male NPT Thread

Package Quantity: 2 Units

Buy More, Save More!
Quantity Price Each
20–39 $46.07
40–79 $41.66
80+ $36.76
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3821 Series
Shape:

Straight

Ends Configuration:
  • 4mm Tube Stem
  • 1/8in Male NPT
Technical Characteristics:
  • Compatible Fluids: All fluids compatible with the fitting component materials
  • Working Pressure: Vacuum to 30 bar. (20 bar: 3879 and 3889)
  • Working Temperature: -25°C to +150°C
Advantages:
  • Resistance to corrosion thanks to the component material
  • Suitable for permanent food contact
  • Suitable for industrial cleaning agents and detergents
  • Hygienic external design, for reducing retention zones
Regulations:
  • ISO 14743
  • RoHS
  • REACH
  • FDA: 21 CFR
  • PED
Component Materials:
  • Body: Stainless Steel 316L
  • Adapter: Stainless Steel 316L
  • Collet: Stainless Steel 316L
  • Protection Washer: Stainless Steel 316L
  • Seals: FKM
Part Number ØD C F H Kg
3821 04 11 4 mm 1/8" 10 mm 21 mm .006 Kg
3821 06 11 6 mm 1/8" 10 mm 23 mm .007 Kg
3821 06 14 6 mm 1/4" 14 mm 24 mm .016 Kg
3821 08 11 8 mm 1/8" 14 mm 24 mm .008 Kg
3821 08 14 8 mm 1/4" 14 mm 25 mm .016 Kg
3821 10 14 10 mm 1/4" 14 mm 30 mm .018 Kg
3821 10 18 10 mm 3/8" 17 mm 30 mm .010 Kg
