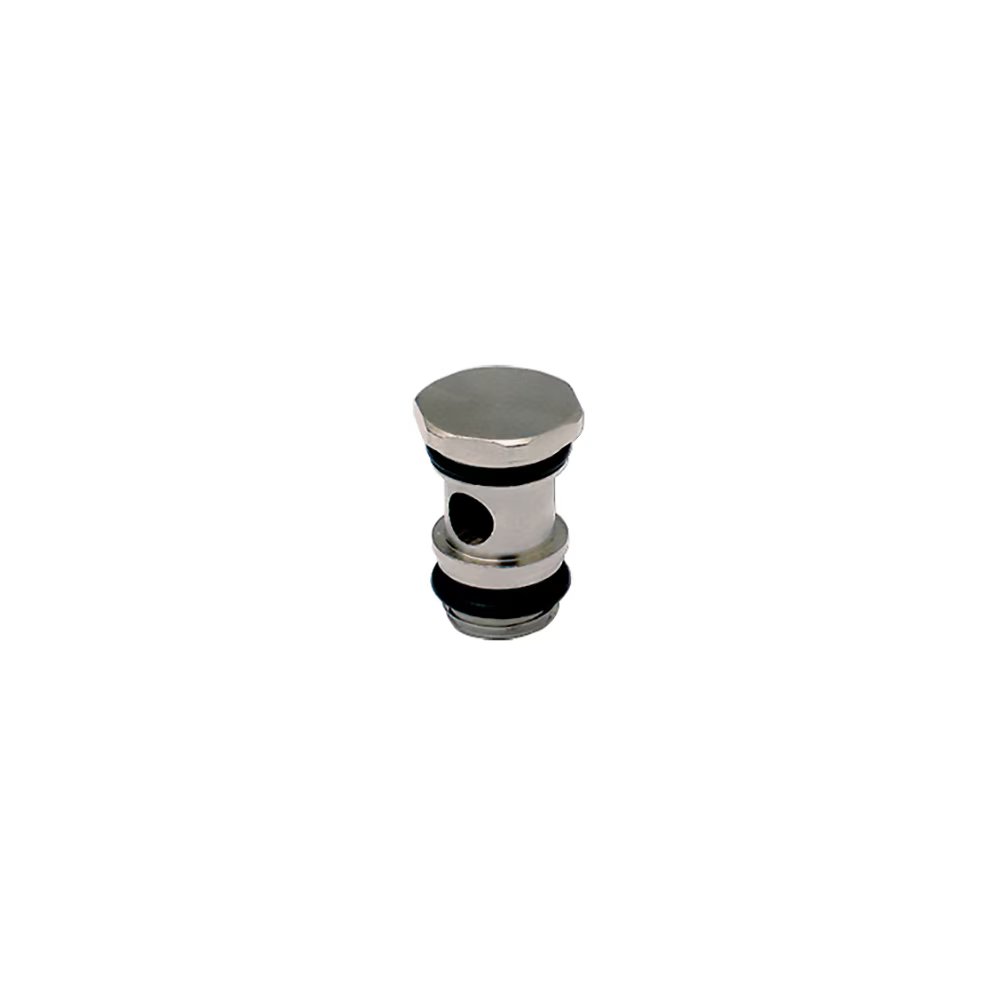

3527 00 10 by Parker | Legris Modular Fittings | 1/8" Male BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

3527 00 10 by Parker | Legris Modular Fittings | 1/8" Male BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

Sale price$62.13

by Parker Hannifin
LF 3000® Push-In Fittings / Modular Banjo Fittings:3527 Single Banjo Bolts, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $58.40
40–79 $52.81
80+ $46.60
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3527 Series
Shape:

Banjo

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number C F H H1 Kg
3527 00 19* M5x0.8 - 17 mm 7.5 mm .003 Kg
3527 00 10 1/8" 13 mm 17 mm 7.5 mm .011 Kg
3527 00 13 1/4" 17 mm 21 mm 9.5 mm .020 Kg
3527 00 17 3/8" 20 mm 20 mm 24.5 mm .033 Kg

*With screwdriver slot

Full bore
