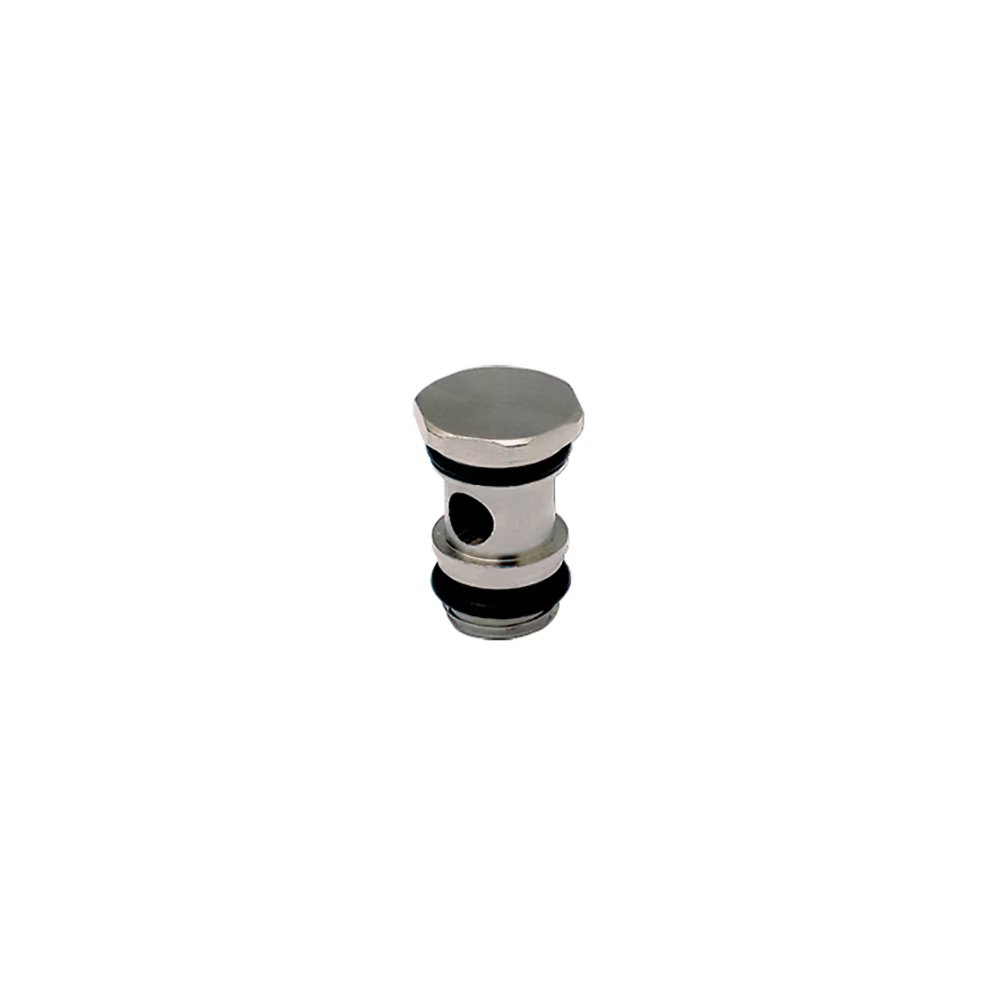

3527 00 13 by Parker | Legris Modular Fittings | 1/4" Male BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

3527 00 13 by Parker | Legris Modular Fittings | 1/4" Male BSPP Thread | Banjo Bolts | Nickel-Plated Brass | Pack of 10

Sale price$63.81

by Parker Hannifin
LF 3000® Push-In Fittings / Modular Banjo Fittings:3527 Single Banjo Bolts, Male BSPP and Metric Thread

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
10–39 $59.98
40–79 $54.24
80+ $47.86
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3527 Series
Shape:

Banjo

Material(s):
  • Nickel-Plated Brass
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Screwed from above, for minimum space between connections
  • 360° orientable
  • Stacking of banjo bodies to allow construction of 2 to 6 outlets
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Bolt: Nickel-plated brass, with or without pre-coating, depending on the configuration
  • Body: Technical Polymer
  • O-Ring: NBR
  • Release Button Technical Polymer
Part Number C F H H1 Kg
3527 00 19* M5x0.8 - 17 mm 7.5 mm .003 Kg
3527 00 10 1/8" 13 mm 17 mm 7.5 mm .011 Kg
3527 00 13 1/4" 17 mm 21 mm 9.5 mm .020 Kg
3527 00 17 3/8" 20 mm 20 mm 24.5 mm .033 Kg

*With screwdriver slot

Full bore

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
