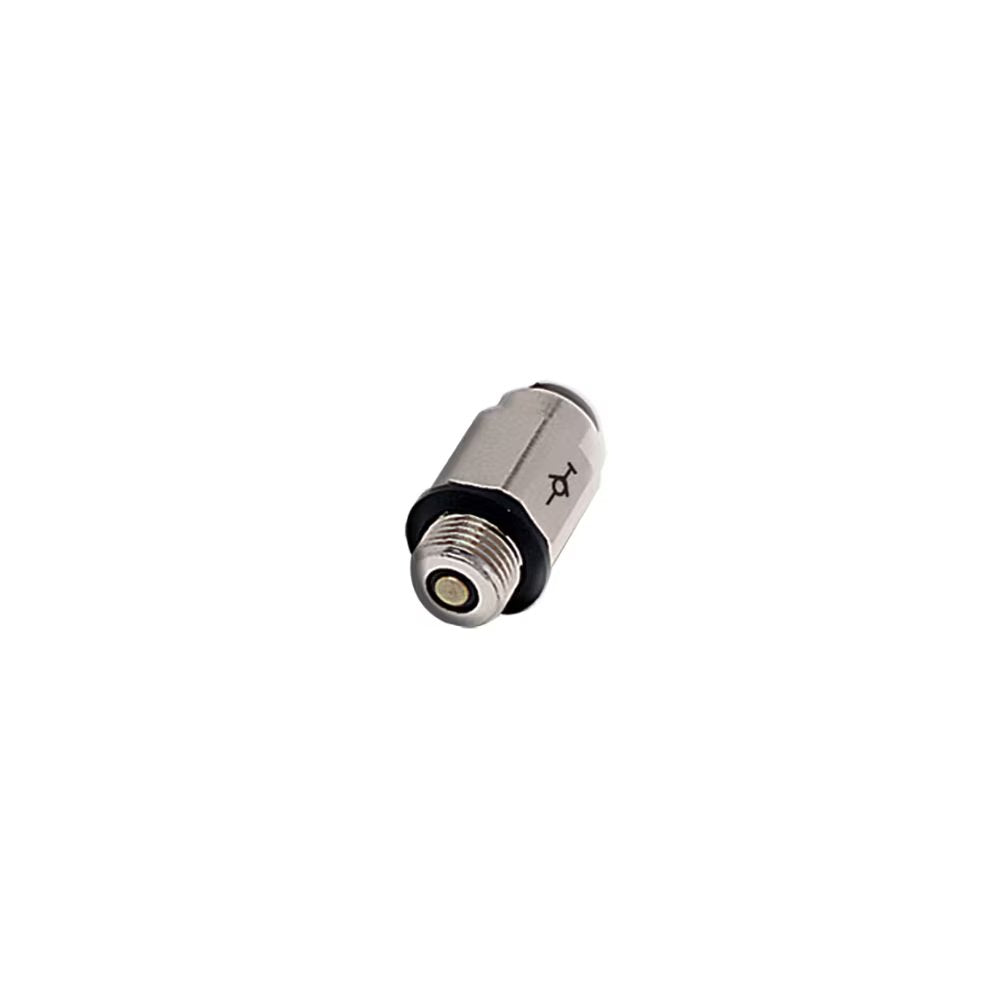

3391 10 17 by Parker | Legris Self-Sealing Stud Fitting | 10 mm Tube Size x 3/8" Male BSPP Thread | Straight | Nickel-Plated Brass | Pack of 10
by Parker Hannifin
LF 3000 ® Push-In Fittings / Self-Sealing and Oscillating Fittings:3391 Self-Sealing Stud Fitting, Male BSPP Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $170.76 |
| 20–59 | $154.41 |
| 60+ | $136.25 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | E | F | H | H1 | H2 | ØT | Kg |
| 3391 04 10 | 4 mm | 1/8" | 5 mm | 13 mm | 18 mm | 7.5 mm | 6 mm | 5 mm | .017 Kg |
| 3391 06 10 | 6 mm | 1/8" | 5 mm | 14 mm | 19.5 mm | 9 mm | 6 mm | 7.5 mm | .018 Kg |
| 3391 08 10 | 8 mm | 1/8" | 5 mm | 14 mm | 29.5 mm | 10 mm | 6 mm | 7.5 mm | .025 Kg |
| 3391 08 13 | 8 mm | 1/4" | 5.5 mm | 16 mm | 25.5 mm | 11 mm | 8 mm | 9 mm | .032 Kg |
| 3391 10 17 | 10 mm | 3/8" | 5.5 mm | 20 mm | 27.5 mm | 13 mm | 11 mm | 10 mm | .055 Kg |
Maximum working pressure: 10 bar
