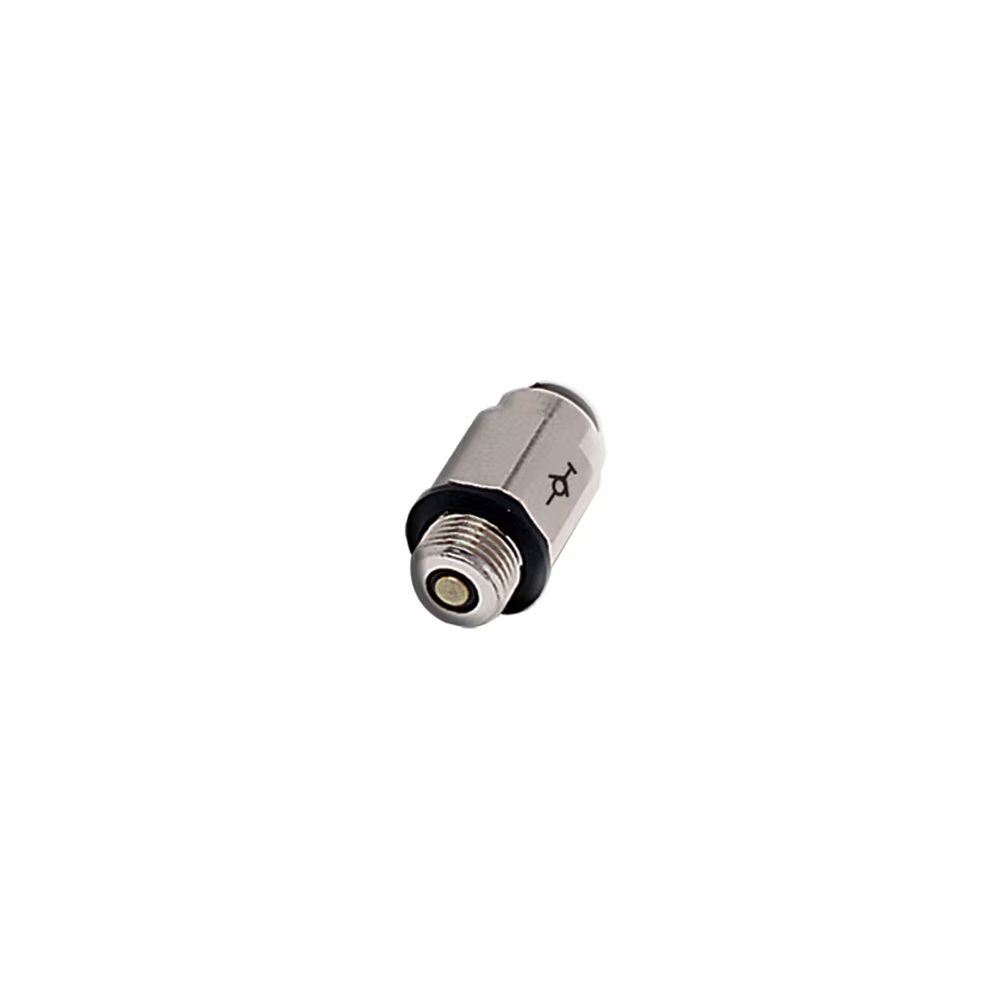

3391 04 10 by Parker | Legris Self-Sealing Stud Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | Straight | Nickel-Plated Brass | Pack of 10

3391 04 10 by Parker | Legris Self-Sealing Stud Fitting | 4 mm Tube Size x 1/8" Male BSPP Thread | Straight | Nickel-Plated Brass | Pack of 10

Sale price$113.22

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar (10 bar: self-sealing fitting)
  • Working Temperature: -20°C to +80°C
Advantages:
  • Self-Sealing Fittings
  • Prevents fluid flow when there is no tube connected
  • Prevents incorrect assembly
  • Oscillating Fittings
  • Fitting swivels when cylinder is in movement : no bending of the tube
  • High durability fitting/tube assembly
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Body: Self-sealing fitting: nickel-plated brass
    Oscillating fitting: Technical Polymer
  • Adaptor: Nickel-Plated Brass
  • Anti-friction bearings
  • LF 3000® Components
Part Number ØD C E F H H1 H2 ØT Kg
3391 04 10 4 mm 1/8" 5 mm 13 mm 18 mm 7.5 mm 6 mm 5 mm .017 Kg
3391 06 10 6 mm 1/8" 5 mm 14 mm 19.5 mm 9 mm 6 mm 7.5 mm .018 Kg
3391 08 10 8 mm 1/8" 5 mm 14 mm 29.5 mm 10 mm 6 mm 7.5 mm .025 Kg
3391 08 13 8 mm 1/4" 5.5 mm 16 mm 25.5 mm 11 mm 8 mm 9 mm .032 Kg
3391 10 17 10 mm 3/8" 5.5 mm 20 mm 27.5 mm 13 mm 11 mm 10 mm .055 Kg

Maximum working pressure: 10 bar

Additional Product Data:

Series:
  • 3391 Series
Shape:

Straight

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Male BSPP

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
