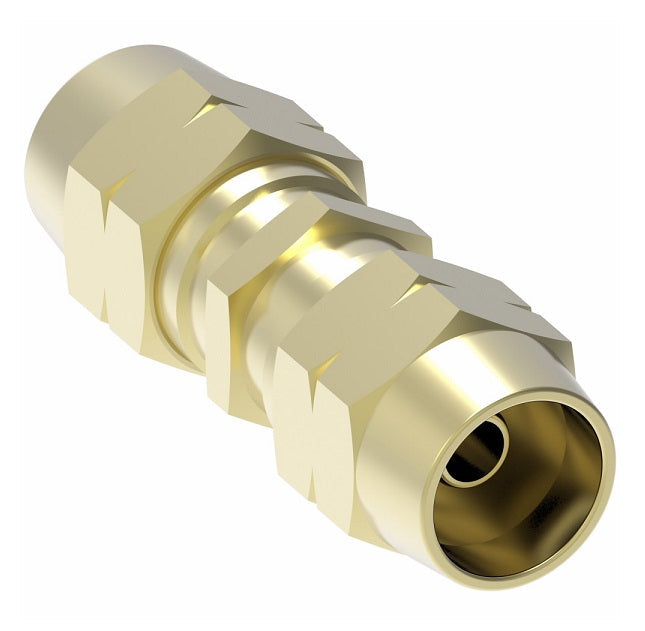

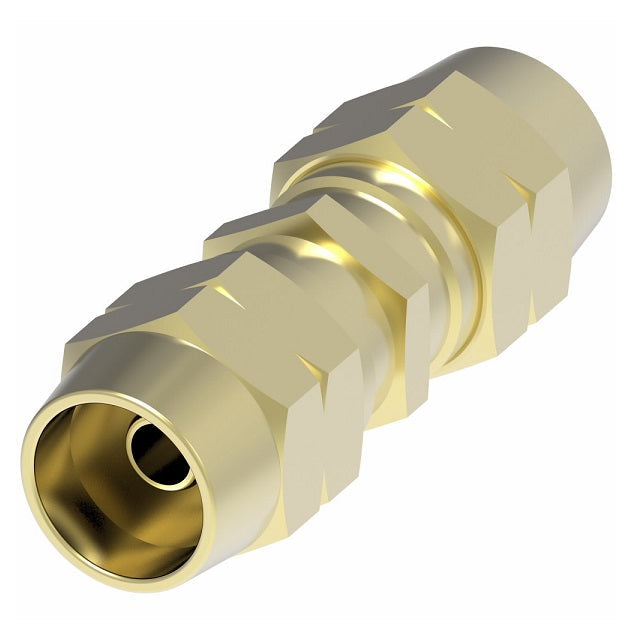

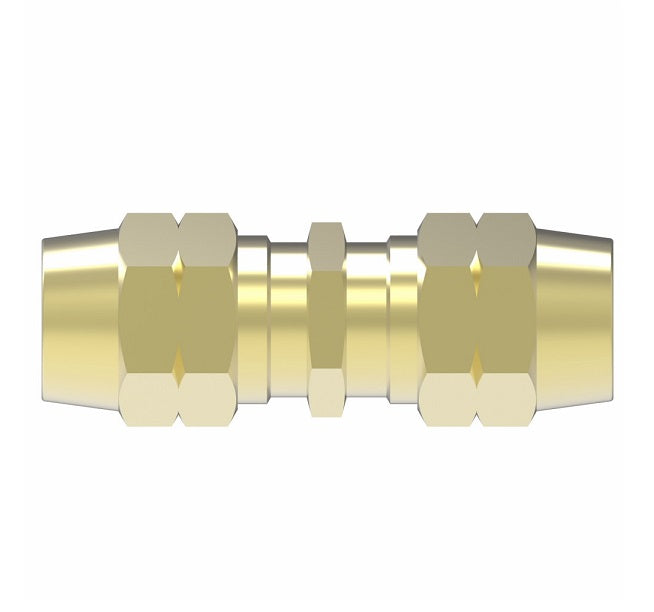

33806B-Y06 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -06 Reusable Hose End x -06 Reusable Hose End | Brass
33806B-Y06 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -06 Reusable Hose End x -06 Reusable Hose End | Brass
33806B-Y06 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -06 Reusable Hose End x -06 Reusable Hose End | Brass

33806B-Y06 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -06 Reusable Hose End x -06 Reusable Hose End | Brass

Sale price$47.84

Weatherhead by Danfoss
DOT Field Attachable Fitting - 338 'B' Series - Hose Mender - Straight

For air brake hose lines.

Can be used for nearly any air brake line. Easy to assemble. Brass material offers excellent resistance against corrosion.
Buy More, Save More!
Quantity Price Each
10–39 $44.97
40–79 $40.66
80+ $35.88
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Reusable Hose End
  • 3/8in Reusable Hose End
Material(s):
  • Brass
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. Overall Length
33806B-Y06 3/8" 3.28
33808B-Y08 1/2" 3.25

Note: Drawings may differ from actual parts.
