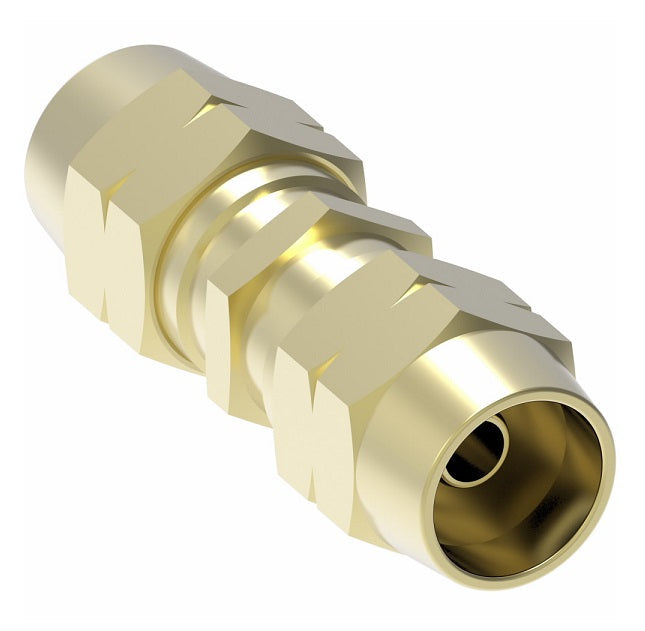

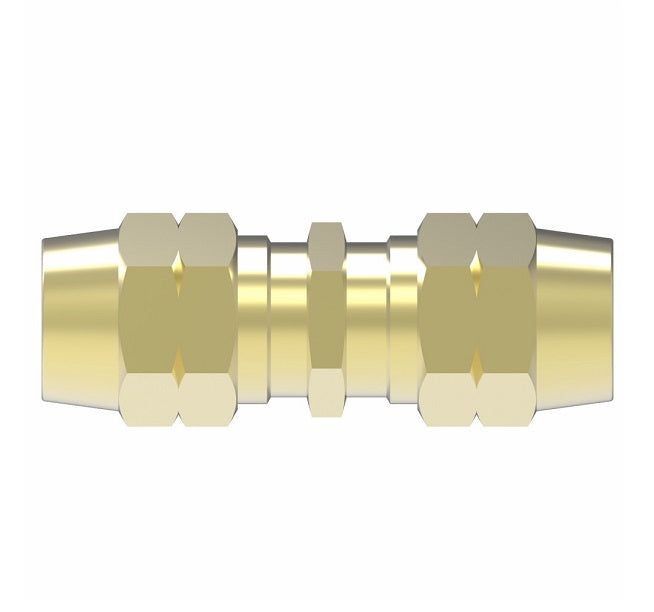

33808B-Y08 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -08 Reusable Hose End x -08 Reusable Hose End | Brass
33808B-Y08 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -08 Reusable Hose End x -08 Reusable Hose End | Brass
33808B-Y08 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -08 Reusable Hose End x -08 Reusable Hose End | Brass

33808B-Y08 Weatherhead by Danfoss | Hose Mender Field Attachable Fitting | 338 'B' Series DOT | -08 Reusable Hose End x -08 Reusable Hose End | Brass

Sale price$68.40
Buy more, save moreDiscounts applied in cart/checkout.
Notes:
  • Pressure: Determined by maximum working pressure for hose size.
  • Parts are stamped with DOT.
  • Label Set: FS-800
  • To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly.
Material:
  • CA360 Brass
Compatible Hose:
  • EC038
Assembly instructions:
  • 1. Slide nut and sleeve onto hose. Make sure bevel edge of sleeve faces out toward Fitting.
  • 2. Push hose into Fitting until it bottoms.
  • 3. Screw nut until contact is made with body hex.
Part Number Hose I.D. Overall Length
33806B-Y06 3/8" 3.28
33808B-Y08 1/2" 3.25

Note: Drawings may differ from actual parts.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Reusable Hose End
  • 1/2in Reusable Hose End
Material(s):
  • Brass

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
