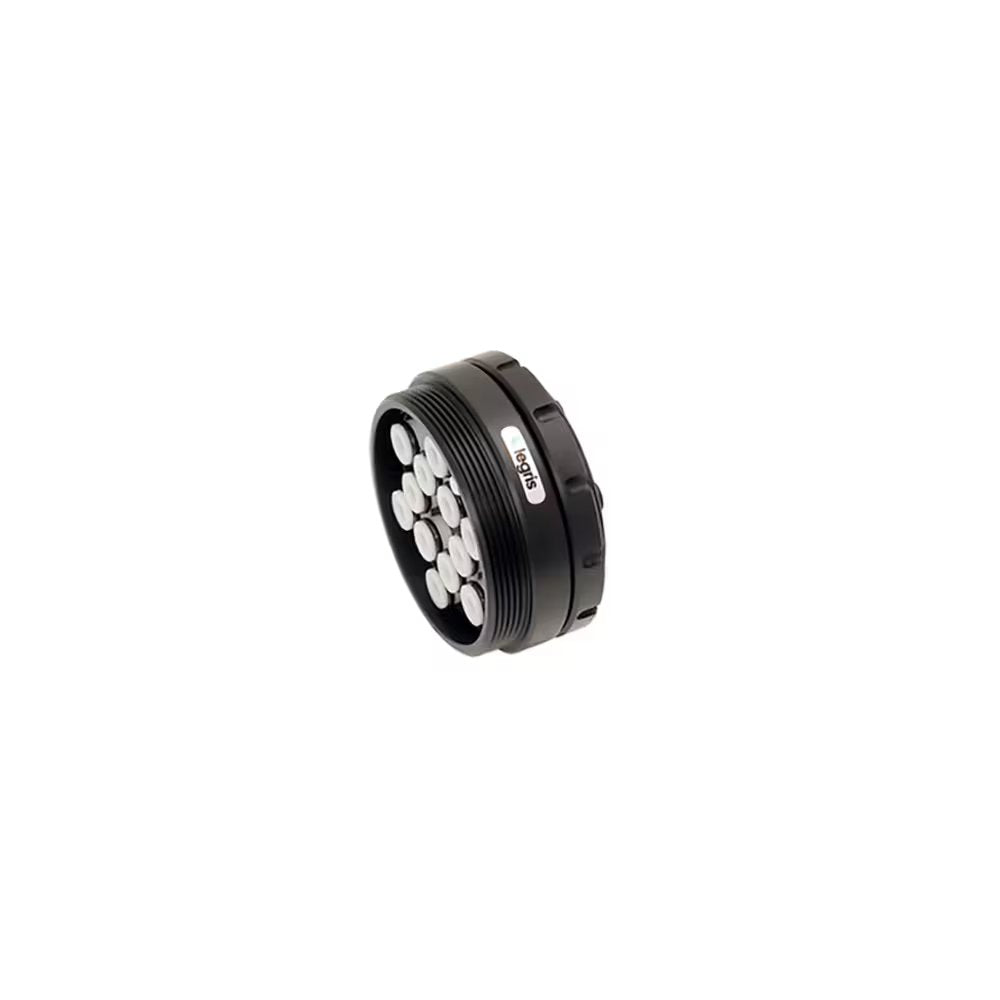

3320 04 00 12 by Parker | Legris Modular Plug-In Connectors | 4 mm Tube Size x M65x1.5 Male Metric Thread x M58x1.5 Male Metric Thread | 12 Outlets | Straight | Polymer

3320 04 00 12 by Parker | Legris Modular Plug-In Connectors | 4 mm Tube Size x M65x1.5 Male Metric Thread x M58x1.5 Male Metric Thread | 12 Outlets | Straight | Polymer

Sale price$133.16

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3320 Multi-Connector Male Screw Body
Buy More, Save More!
Quantity Price Each
5–19 $125.17
20–59 $113.19
60+ $99.87
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3320 Series
Shape:

Straight

Material(s):
  • Polymer
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • 3 types of solutions: in-line, panel-mounted or DIN rail connector
  • Minimized connection space
  • Prevents incorrect assembly
  • Customized multi-connectors upon request
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Panel-mounted: Zinc-Plated Steel, Technical Polymer
  • In-Line: Aluminum, Technical Polymer
  • DIN Rail: Technical Polymer
Part Number ØD C C1 Number of Outlets G Kg
3320 04 00 04 4 mm M46x1.5 M40x1.5 4 50 mm .069 Kg
3320 04 00 07 4 mm M46x1.5 M40x1.5 7 50 mm .071 Kg
3320 04 00 12 4 mm M65x1.5 M58x1.5 12 70 mm .137 Kg
3320 06 00 04 6 mm M46x1.5 M40x1.5 4 50 mm .070 Kg
3320 06 00 07 6 mm M46x1.5 M40x1.5 7 50 mm .073 Kg

The number of male body outlets must correspond to the same number of outlets on the female body

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
