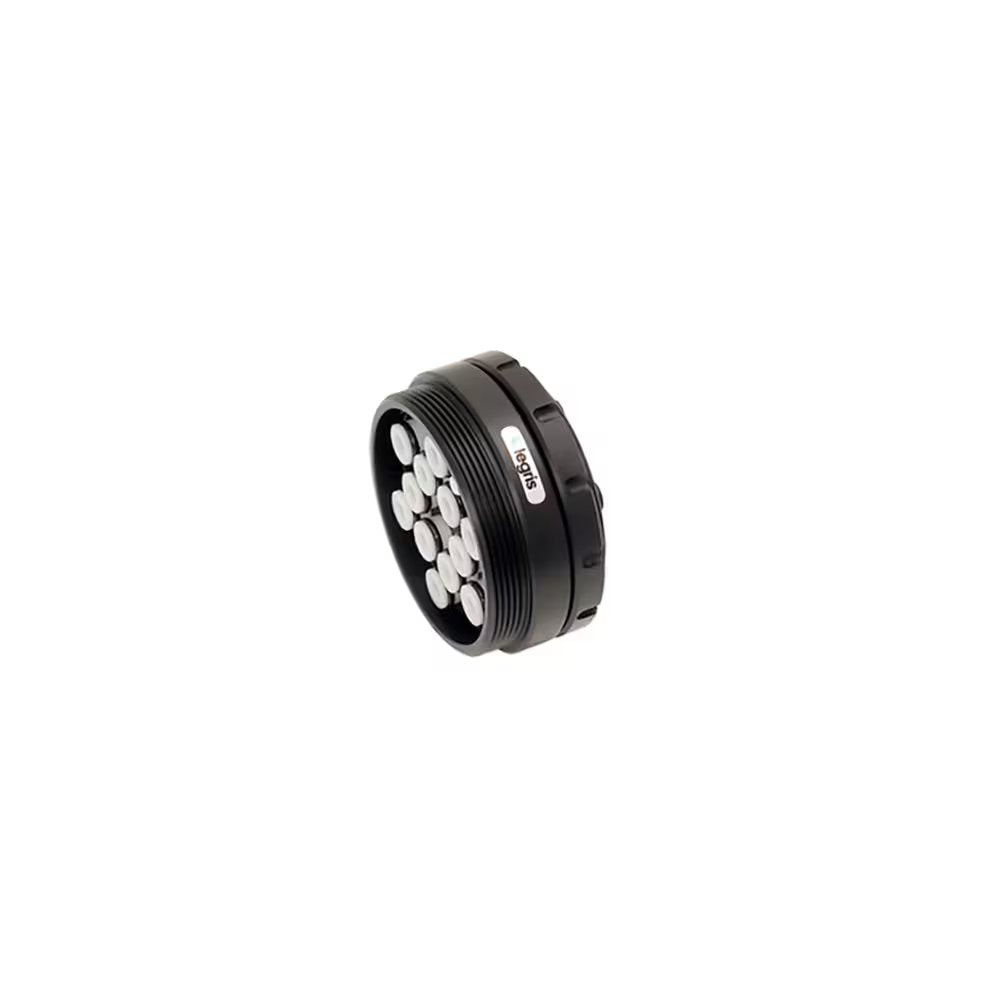

3320 06 00 07 by Parker | Legris Modular Plug-In Connectors | 6 mm Tube Size x M46x1.5 Male Metric Thread x M40x1.5 Male Metric Thread | 7 Outlets | Straight | Polymer

3320 06 00 07 by Parker | Legris Modular Plug-In Connectors | 6 mm Tube Size x M46x1.5 Male Metric Thread x M40x1.5 Male Metric Thread | 7 Outlets | Straight | Polymer

Sale price$112.89

by Parker Hannifin
LF 3000 ® Push-In Fittings / Modular Plug-In Connectors:3320 Multi-Connector Male Screw Body
Buy More, Save More!
Quantity Price Each
5–19 $106.12
20–59 $95.96
60+ $84.67
Discounts applied in cart/checkout.

Product Data:

Series:
  • 3320 Series
Shape:

Straight

Material(s):
  • Polymer
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 10 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • 3 types of solutions: in-line, panel-mounted or DIN rail connector
  • Minimized connection space
  • Prevents incorrect assembly
  • Customized multi-connectors upon request
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Panel-mounted: Zinc-Plated Steel, Technical Polymer
  • In-Line: Aluminum, Technical Polymer
  • DIN Rail: Technical Polymer
Part Number ØD C C1 Number of Outlets G Kg
3320 04 00 04 4 mm M46x1.5 M40x1.5 4 50 mm .069 Kg
3320 04 00 07 4 mm M46x1.5 M40x1.5 7 50 mm .071 Kg
3320 04 00 12 4 mm M65x1.5 M58x1.5 12 70 mm .137 Kg
3320 06 00 04 6 mm M46x1.5 M40x1.5 4 50 mm .070 Kg
3320 06 00 07 6 mm M46x1.5 M40x1.5 7 50 mm .073 Kg

The number of male body outlets must correspond to the same number of outlets on the female body
