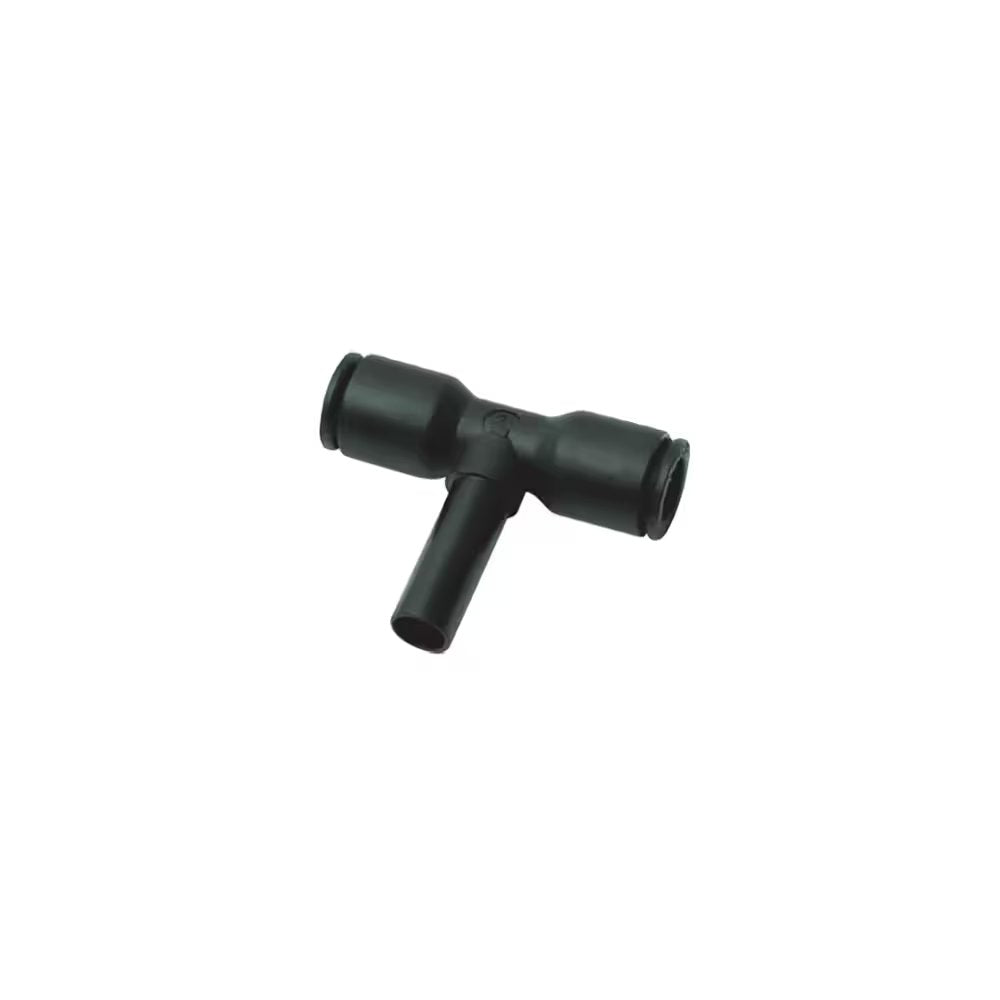

3188 62 00 by Parker | Legris Plug-In Fittings | 1/2" Push-to-Connect x 1/2" Tube Stem | 2.01" Length | Tee | Polymer | Pack of 10

3188 62 00 by Parker | Legris Plug-In Fittings | 1/2" Push-to-Connect x 1/2" Tube Stem | 2.01" Length | Tee | Polymer | Pack of 10

Sale price$75.18

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3188 Equal and Unequal Plug-In Branch Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–19 $70.67
20–59 $63.90
60+ $56.39
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3188 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G H H1 H2 L Oz
3188 53 00 1/8" 1/8" .33" .95" .26" .59" .57" .083 Oz
3188 56 00 1/4" 1/4" .43" .98" .43" .77" .73" .18 Oz
3188 60 00 3/8" 3/8" .63" 1.61" .35" .96" .98" .423 Oz
3188 62 00 1/2" 1/2" .87" 2.01" .51" 1.12" 1.38" .600 Oz
