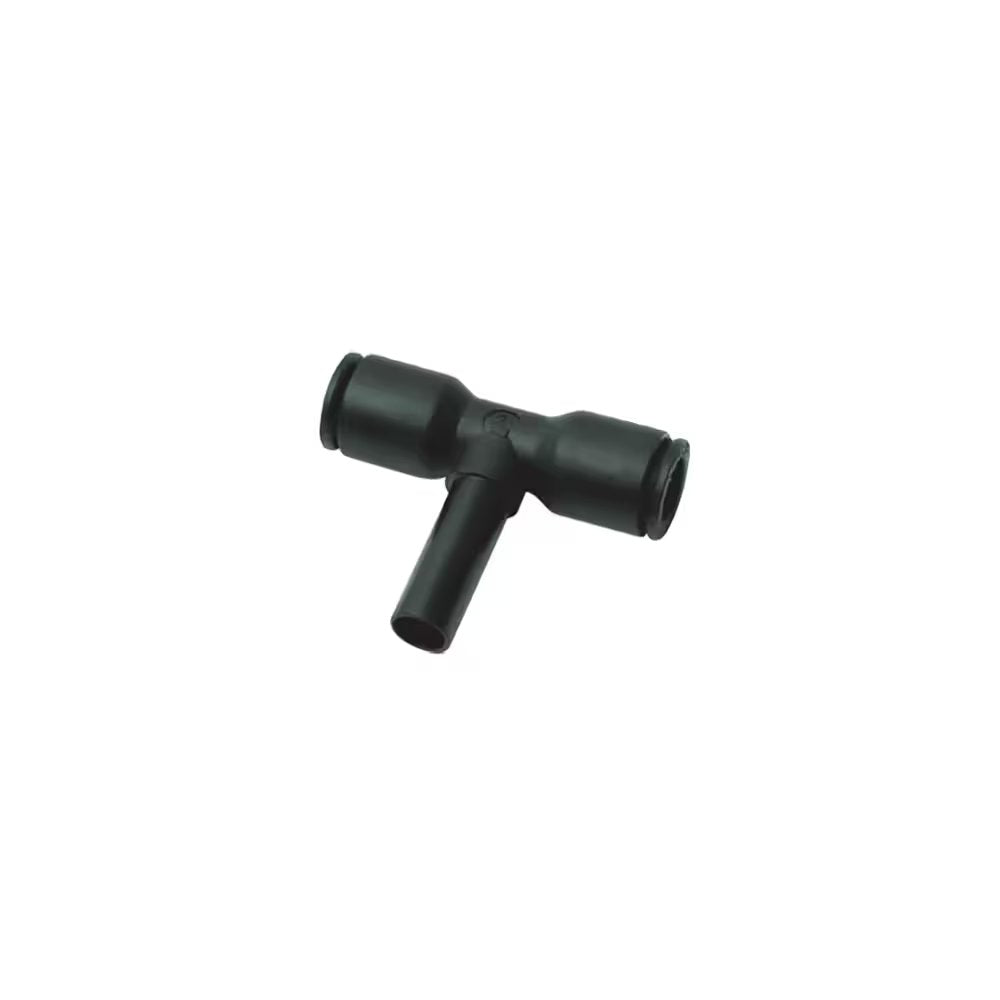

3188 53 00 by Parker | Legris Plug-In Fittings | 1/8" Push-to-Connect x 1/8" Tube Stem | .95" Length | Tee | Polymer | Pack of 10

3188 53 00 by Parker | Legris Plug-In Fittings | 1/8" Push-to-Connect x 1/8" Tube Stem | .95" Length | Tee | Polymer | Pack of 10

Sale price$43.31

by Parker Hannifin
LF 3000® Push-In Fittings / Plug-In Fittings and Accessories:3188 Equal and Unequal Plug-In Branch Tee

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–39 $40.71
40–79 $36.81
80+ $32.48
Discounts applied in cart/checkout.

Product Data:

Brand:
  • LF 3000®
Series:
  • 3188 Series
Shape:

Tee
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD1 ØD2 G H H1 H2 L Oz
3188 53 00 1/8" 1/8" .33" .95" .26" .59" .57" .083 Oz
3188 56 00 1/4" 1/4" .43" .98" .43" .77" .73" .18 Oz
3188 60 00 3/8" 3/8" .63" 1.61" .35" .96" .98" .423 Oz
3188 62 00 1/2" 1/2" .87" 2.01" .51" 1.12" 1.38" .600 Oz

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
