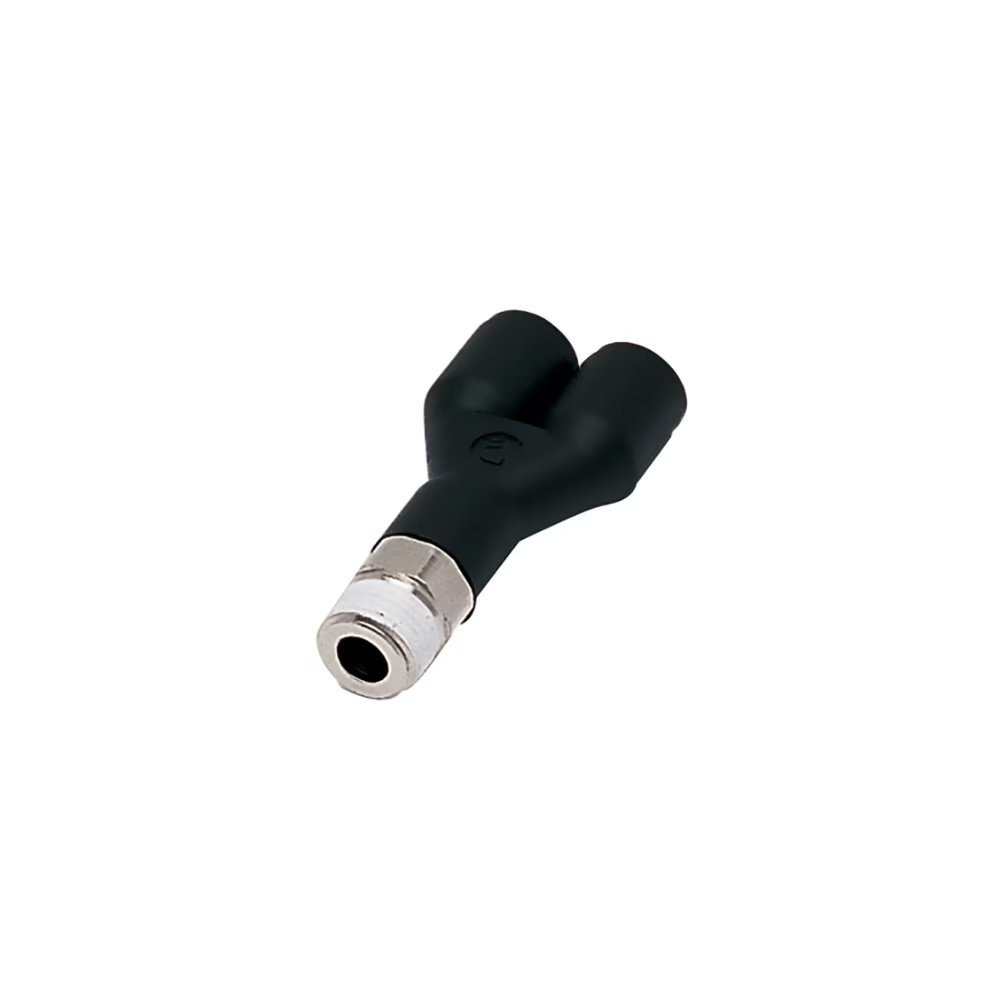

3148 12 17 by Parker | Legris Stud Fitting | 12 mm Push-to-Connect x 3/8" Male Swivel BSPT Thread | 19 mm Hex | Y | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3148 Y Piece, Male BSPT Thread
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $148.96 |
| 20–59 | $134.70 |
| 60+ | $118.85 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Y
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | ØD | C | F | H | K | L | N | Kg |
| 3148 04 10 | 4 mm | 1/8" | 10 mm | 32.5 mm | 8.5 mm | 17.5 mm | 9 mm | .009 Kg |
| 3148 04 13 | 4 mm | 1/4" | 14 mm | 33 mm | 8.5 mm | 17.5 mm | 9 mm | .018 Kg |
| 3148 06 10 | 6 mm | 1/4" | 10 mm | 39.5 mm | 10.5 mm | 21.5 mm | 11 mm | .012 Kg |
| 3148 06 13 | 6 mm | 1/4" | 14 mm | 40 mm | 10.5 mm | 21.5 mm | 11 mm | .021 Kg |
| 3148 08 10 | 8 mm | 1/8" | 13 mm | 56.5 mm | 13.5 mm | 28 mm | 14.5 mm | .020 Kg |
| 3148 08 13 | 8 mm | 1/4" | 14 mm | 55.5 mm | 13.5 mm | 28 mm | 14.5 mm | .025 Kg |
| 3148 08 17 | 8 mm | 3/8" | 16 mm | 48.5 mm | 13.5 mm | 28 mm | 14.5 mm | .034 Kg |
| 3148 10 13 | 10 mm | 1/4" | 14 mm | 60 mm | 19 mm | 39 mm | 20 mm | .033 Kg |
| 3148 10 17 | 10 mm | 3/8" | 16 mm | 60.5 mm | 19 mm | 39 mm | 20 mm | .043 Kg |
| 3148 10 21 | 10 mm | 1/2" | 24 mm | 61 mm | 19 mm | 39 mm | 20 mm | .062 Kg |
| 3148 12 17 | 12 mm | 3/8" | 19 mm | 66 mm | 19 mm | 39 mm | 20 mm | .054 Kg |
| 3148 12 21 | 12 mm | 1/2" | 21 mm | 66 mm | 19 mm | 39 mm | 20 mm | .059 Kg |
Pre-coated thread
The body swivels for positioning purposes.
