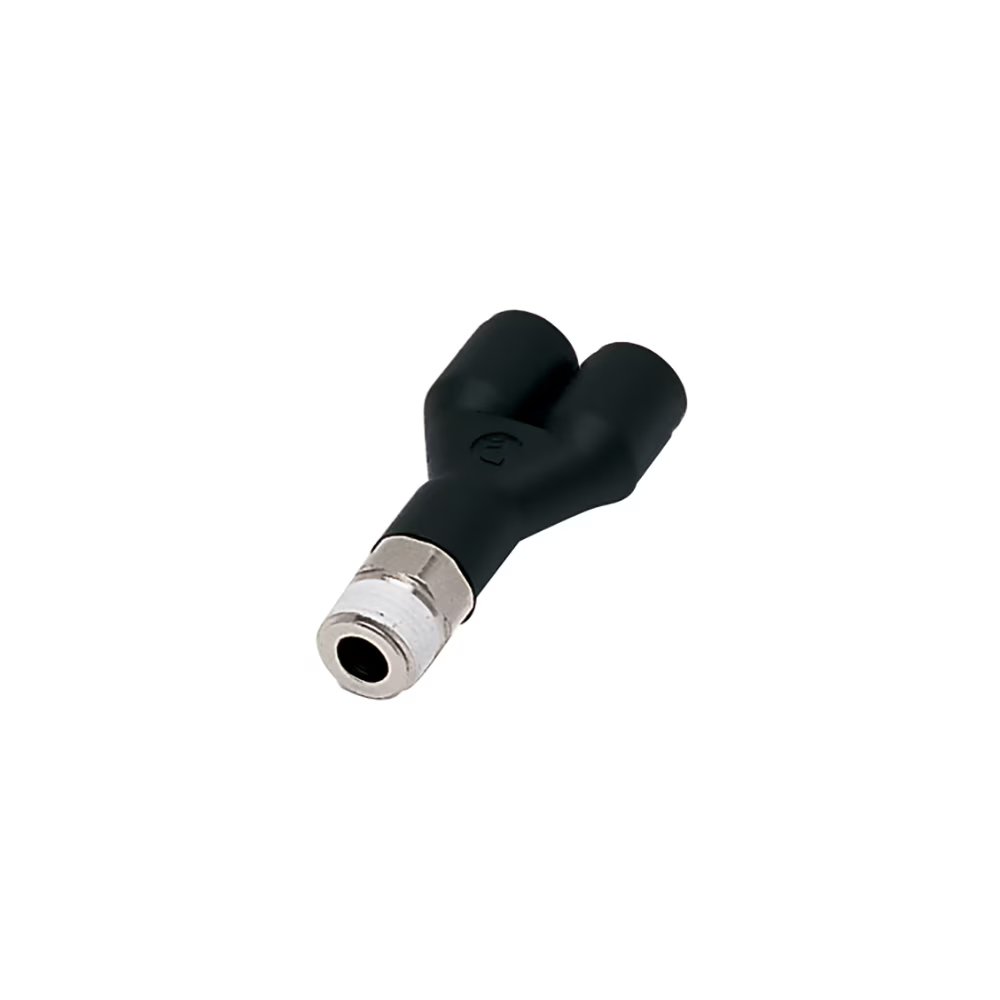

3148 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPT Thread | 10 mm Hex | Y | Polymer | Pack of 10
Parker Fluid Connections Division

3148 06 10 by Parker | Legris Stud Fitting | 6 mm Push-to-Connect x 1/8" Male Swivel BSPT Thread | 10 mm Hex | Y | Polymer | Pack of 10

Sale price$112.69

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3148 Y Piece, Male BSPT Thread

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3148 Series
Shape:

Y
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD C F H K L N Kg
3148 04 10 4 mm 1/8" 10 mm 32.5 mm 8.5 mm 17.5 mm 9 mm .009 Kg
3148 04 13 4 mm 1/4" 14 mm 33 mm 8.5 mm 17.5 mm 9 mm .018 Kg
3148 06 10 6 mm 1/4" 10 mm 39.5 mm 10.5 mm 21.5 mm 11 mm .012 Kg
3148 06 13 6 mm 1/4" 14 mm 40 mm 10.5 mm 21.5 mm 11 mm .021 Kg
3148 08 10 8 mm 1/8" 13 mm 56.5 mm 13.5 mm 28 mm 14.5 mm .020 Kg
3148 08 13 8 mm 1/4" 14 mm 55.5 mm 13.5 mm 28 mm 14.5 mm .025 Kg
3148 08 17 8 mm 3/8" 16 mm 48.5 mm 13.5 mm 28 mm 14.5 mm .034 Kg
3148 10 13 10 mm 1/4" 14 mm 60 mm 19 mm 39 mm 20 mm .033 Kg
3148 10 17 10 mm 3/8" 16 mm 60.5 mm 19 mm 39 mm 20 mm .043 Kg
3148 10 21 10 mm 1/2" 24 mm 61 mm 19 mm 39 mm 20 mm .062 Kg
3148 12 17 12 mm 3/8" 19 mm 66 mm 19 mm 39 mm 20 mm .054 Kg
3148 12 21 12 mm 1/2" 21 mm 66 mm 19 mm 39 mm 20 mm .059 Kg

Pre-coated thread

The body swivels for positioning purposes.
