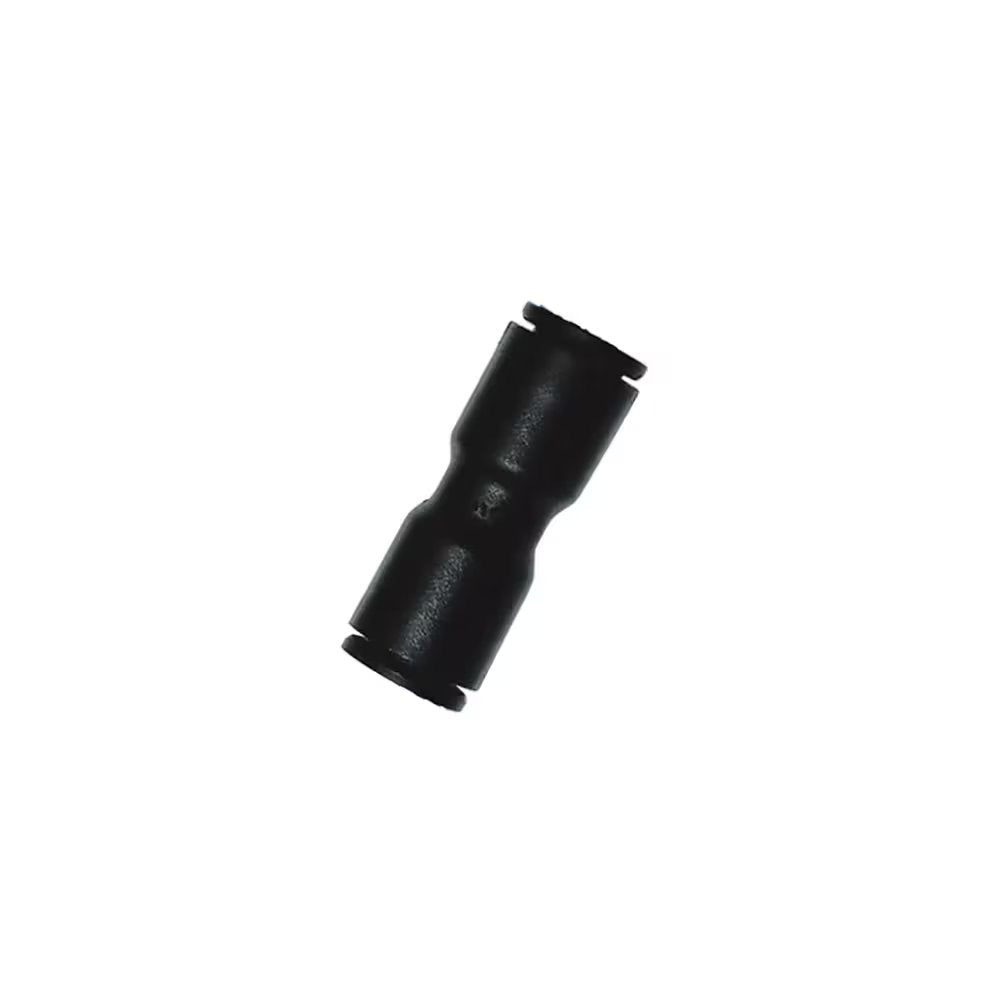

3106 06 10 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 10 mm Push-to-Connect | 42 mm Length | Straight | Polymer | Pack of 10

3106 06 10 by Parker | Legris Push-In Fitting | 6 mm Push-to-Connect x 10 mm Push-to-Connect | 42 mm Length | Straight | Polymer | Pack of 10

Sale price$138.86
Quantity Price Each
50–99 $124.97
100+ $111.09
Discounts applied at checkout.

by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector

Package Quantity: 10 Units

Product Data:

Brand:
  • LF 3000®
Series:
  • 3106 Series
Shape:

Straight
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 20 bar
  • Working Temperature: -20°C to +80°C
Advantages:
  • Robust, lightweight, compact to build your pneumatic circuits
  • Full flow connections to optimize flow rates
  • Use in vacuum as well as in compressed air
  • Customized products upon request. Please, contact us
Regulations:
  • ISO 14743
  • PED
  • RoHS
  • REACH
Component Materials:
  • Gripping Ring: Stainless Steel
  • Body: Technical Polymer
  • BSPP Thread Sealing: NBR O-Ring
  • BSPT/NPT: Pre-coating
  • Adaptor: Nickel-Plated Brass
  • Sealing Ring: NBR
  • Release Button Technical Polymer
Part Number ØD ØD1 G G1 L Kg
3106 03 00 3 mm 3 mm - 8.5 mm 25 mm .002 Kg
3106 03 04 3 mm 4 mm - 8.5 mm 25 mm .002 Kg
3106 04 00 4 mm 4 mm - 8.5 mm 25 mm .001 Kg
3106 04 06 4 mm 6 mm - 11 mm 28 mm .002 Kg
3106 04 08 4 mm 8 mm 10.6 mm 13.5 mm 34,1 mm .005 Kg
3106 06 56 6 mm 1/4" mm - 13.5 mm 36 mm .009 Kg
3106 06 00 6 mm 6 mm - 10.5 mm 28.5 mm .002 Kg
3106 06 08 6 mm 8 mm 10.6 13.5 mm 34,1 mm .005 Kg
3106 06 10 6 mm 10 mm - 16 mm 42 mm .008 Kg
3106 08 00 8 mm 8 mm - 13.5 mm 38 mm .004 Kg
3106 08 10 8 mm 10 mm - 16 mm 42 mm .007 Kg
3106 08 12 8 mm 12 mm - 19 mm 50.5 mm .026 Kg
3106 10 00 10 mm 10 mm - 16 mm 42 mm .005 Kg
3106 10 12 10 mm 12 mm - 19 mm 50.5 mm .018 Kg
3106 12 62 12 mm 1/2" - 22 mm 56.5 mm .041 Kg
3106 12 00 12 mm 12 mm - 19 mm 50.5 mm .009 Kg
3106 12 14 12 mm 14 mm - 22 mm 56 mm .025 Kg
3106 12 16 12 mm 16 mm - 27 mm 61 mm .066 Kg
3106 14 00 14 mm 14 mm - 22 mm 56 mm .014 Kg
3106 16 00 16 mm 16 mm - 27 mm 56 mm .041 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
