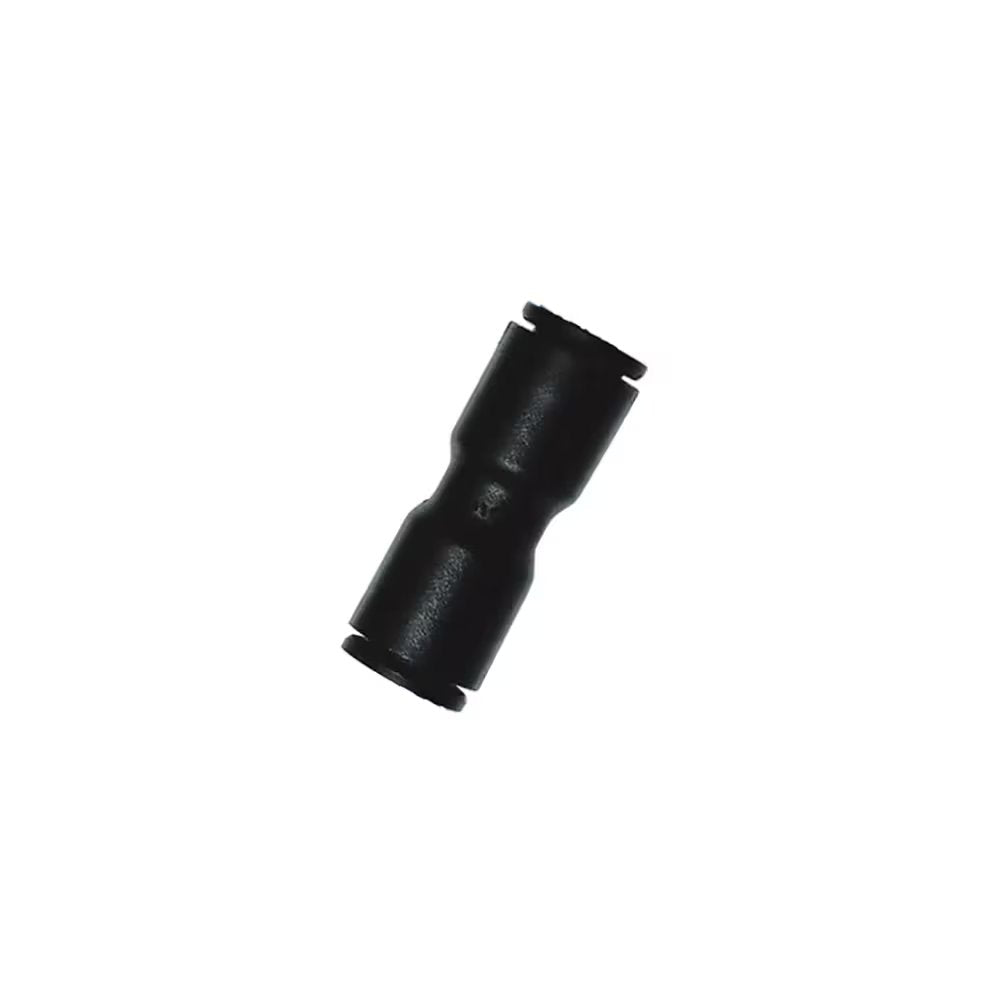

3106 04 08 by Parker | Legris Push-In Fitting | 4 mm Push-to-Connect x 8 mm Push-to-Connect | 34 mm Length | Straight | Polymer | Pack of 10
by Parker Hannifin
LF 3000® Push-In Fittings / Stud Fittings:3106 Equal and Unequal Tube-to-Tube Connector
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $71.42 |
| 20–59 | $64.58 |
| 60+ | $56.99 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Technical Characteristics: |
|
|---|---|
| Advantages: |
|
| Regulations: |
|
| Component Materials: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | ØD | ØD1 | G | G1 | L | Kg |
| 3106 03 00 | 3 mm | 3 mm | - | 8.5 mm | 25 mm | .002 Kg |
| 3106 03 04 | 3 mm | 4 mm | - | 8.5 mm | 25 mm | .002 Kg |
| 3106 04 00 | 4 mm | 4 mm | - | 8.5 mm | 25 mm | .001 Kg |
| 3106 04 06 | 4 mm | 6 mm | - | 11 mm | 28 mm | .002 Kg |
| 3106 04 08 | 4 mm | 8 mm | 10.6 mm | 13.5 mm | 34,1 mm | .005 Kg |
| 3106 06 56 | 6 mm | 1/4" mm | - | 13.5 mm | 36 mm | .009 Kg |
| 3106 06 00 | 6 mm | 6 mm | - | 10.5 mm | 28.5 mm | .002 Kg |
| 3106 06 08 | 6 mm | 8 mm | 10.6 | 13.5 mm | 34,1 mm | .005 Kg |
| 3106 06 10 | 6 mm | 10 mm | - | 16 mm | 42 mm | .008 Kg |
| 3106 08 00 | 8 mm | 8 mm | - | 13.5 mm | 38 mm | .004 Kg |
| 3106 08 10 | 8 mm | 10 mm | - | 16 mm | 42 mm | .007 Kg |
| 3106 08 12 | 8 mm | 12 mm | - | 19 mm | 50.5 mm | .026 Kg |
| 3106 10 00 | 10 mm | 10 mm | - | 16 mm | 42 mm | .005 Kg |
| 3106 10 12 | 10 mm | 12 mm | - | 19 mm | 50.5 mm | .018 Kg |
| 3106 12 62 | 12 mm | 1/2" | - | 22 mm | 56.5 mm | .041 Kg |
| 3106 12 00 | 12 mm | 12 mm | - | 19 mm | 50.5 mm | .009 Kg |
| 3106 12 14 | 12 mm | 14 mm | - | 22 mm | 56 mm | .025 Kg |
| 3106 12 16 | 12 mm | 16 mm | - | 27 mm | 61 mm | .066 Kg |
| 3106 14 00 | 14 mm | 14 mm | - | 22 mm | 56 mm | .014 Kg |
| 3106 16 00 | 16 mm | 16 mm | - | 27 mm | 56 mm | .041 Kg |
