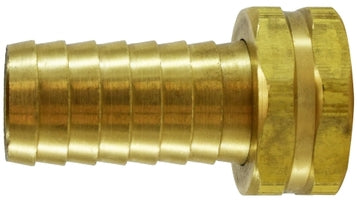

30568 (30-568) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 1" Hose Barb x 1" Female NPSM | Straight | Brass

30568 (30-568) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 1" Hose Barb x 1" Female NPSM | Straight | Brass

Sale price$19.63
Quantity Price Each
50–99 $17.67
100+ $15.70
Discounts applied at checkout.

Midland Industries
Brass Fitting - Garden Hose Fitting - Female NPSM Long Shank

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Female NPSM
Material(s):
  • Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
Part Number Hose ID NPSM Thread A B Hex
30565
(30-565)		 1/2" 1/2" 2.09" 1.50" 0.94
30566
(30-566)		 5/8" 3/4" 2.09" 1.50" 1.18
30567
(30-567)		 3/4" 3/4" 2.09" 1.50" 1.18
30568
(30-568)		 1" 1" 2.12" 1.53" 1.50
