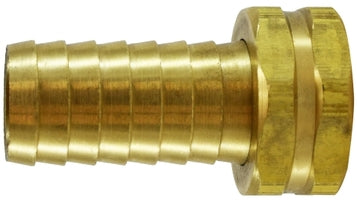

30567 (30-567) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 3/4" Hose Barb x 3/4" Female NPSM | Straight | Brass

30567 (30-567) by Midland | Garden Hose Fitting | Female NPSM Long Shank | 3/4" Hose Barb x 3/4" Female NPSM | Straight | Brass

Sale price$10.49

Midland Industries
Brass Fitting - Garden Hose Fitting - Female NPSM Long Shank
Buy More, Save More!
Quantity Price Each
10–39 $9.86
40–79 $8.92
80+ $7.87
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 3/4in Female NPSM
Material(s):
  • Brass
Temperature and Working Pressure Ranges:
  • From +350°F to +100°F at 75 PSI maximum or the recommended working pressure of the garden hose. (Not to exceed 150 PSI.)
  • Note: All female connector ends should have a rubber washer inserted prior to usage.
  • Male garden hose threads are all 3/4" with an outside diameter of 1.0625 and 11-1/2" threads per inch.
Part Number Hose ID NPSM Thread A B Hex
30565
(30-565)		 1/2" 1/2" 2.09" 1.50" 0.94
30566
(30-566)		 5/8" 3/4" 2.09" 1.50" 1.18
30567
(30-567)		 3/4" 3/4" 2.09" 1.50" 1.18
30568
(30-568)		 1" 1" 2.12" 1.53" 1.50

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
