3000-0500-020 by Jason Industrial | 3000 Series | FDA USDA Material Handling Food Hose | Polyurethane | 5" ID | 5.80" OD | 45 PSI | Blue | 20ft
Package Quantity: 20 FT
Buy more, save moreDiscounts applied in cart/checkout.
Food Hose
Jason Industrial | 3000 Series | FDA USDA Material Handling Food Hose
1
What is this product used for?

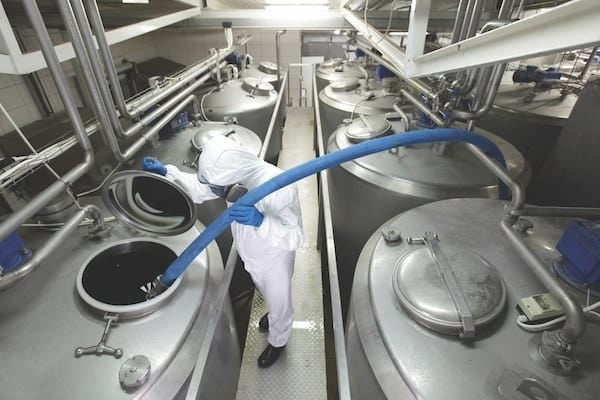

- For heavy duty food grade material handling, railcar unloading, abrasive suction and transfer.
2
What are the key specifications?
Tube
Polyurethane
Cover
Polyurethane
Reinforcement
High tensile strength polyester yarn reinforcement. Clockwise PVC helix with SΩ ground wire.
Temperature Range
-40°F (-40°C) to +140°F (+60°C)
Colors
Clear Tube, Blue Helix
Branding
N/A
Specifications
FDA & USDA compliant material for use in meat & poultry plants.
Design Factor
3:1
3
What are the main product features?
- Clear visual flow and higher transfer pressures.
- -40°F cold weather resistance with sub-zero flexibility.
- Easy to drag with "Go-Glide" external clockwise PVC helix.
- Vacuum up to 29" of Hg.
- SΩ wire must be secured to ground to dissipate static electricity.
- FDA & USDA compliant material for use in meat & poultry plants.
- Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity.
4
Which sizes or configurations are available?
| Part Number 20ft |
Part Number 50ft |
Part Number 100ft |
ID | OD | Reinf. Braids |
Max. Working Pressure @ 68° F |
Vacuum @ 68°F |
Weight (lbs/ft) |
Minimum Bend Radius |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | BAR | in of Hg | in | mm | |||||
| — | — | 3000-0300-100 | 3" | 76.20mm | 3.80" | 96.52mm | 1 | 70 PSI | 4.83 BAR | 29.0 | 1.20 lbs | 4.00" | 101.60mm |
| — | — | 3000-0400-100 | 4" | 101.60mm | 4.85" | 123.19mm | 1 | 65 PSI | 4.48 BAR | 29.0 | 1.60 lbs | 6.00" | 152.40mm |
| 3000-0500-020 | 3000-0500-050 | 3000-0500-100 | 5" | 127.00mm | 5.80" | 147.32mm | 1 | 45 PSI | 3.10 BAR | 29.0 | 2.46 lbs | 10.00" | 254.00mm |
| — | 3000-0600-050 | 3000-0600-100 | 6" | 152.40mm | 6.92" | 175.77mm | 1 | 40 PSI | 2.76 BAR | 29.0 | 2.86 lbs | 12.00" | 304.80mm |
WARNING: Working pressure (W.P.) is temperature dependent.
No by the foot sales. This is a Packaged Length product.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
45
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Special Properties:
