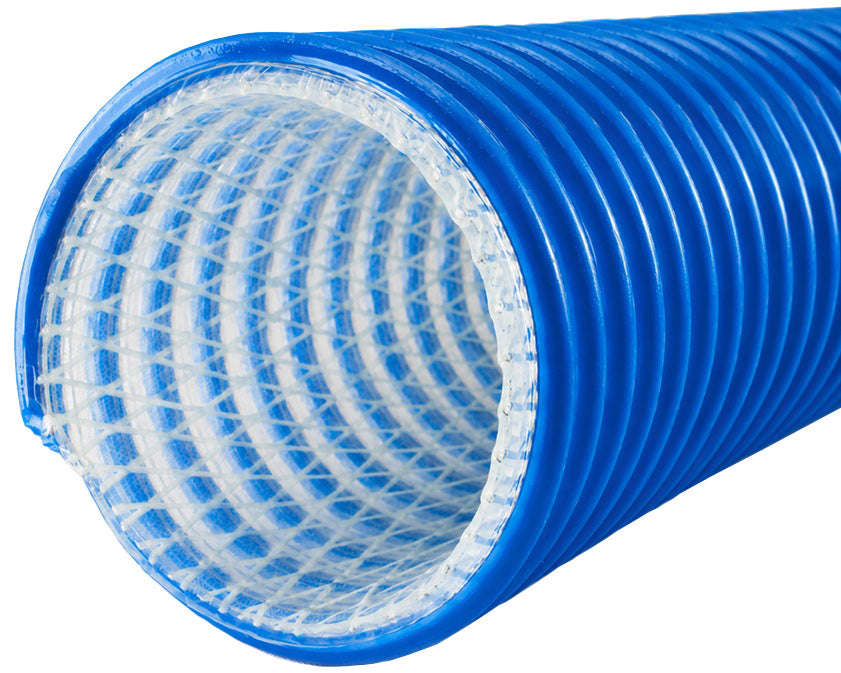

3000-0600-100 by Jason Industrial | 3000 Series | FDA USDA Material Handling Food Hose | Polyurethane | 6" ID | 6.92" OD | 40 PSI | Blue | 100ft
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Food Hose
Jason Industrial | 3000 Series | FDA USDA Material Handling Food Hose
1
What is this product used for?

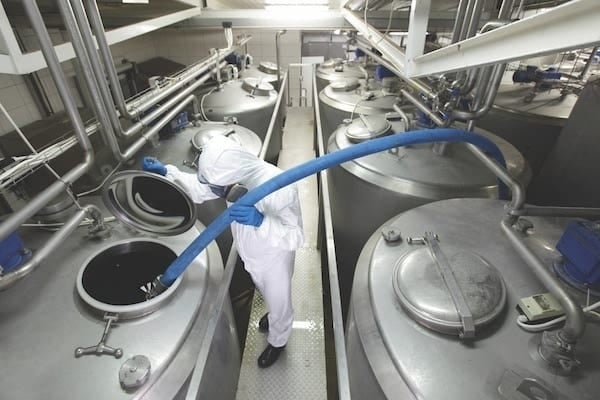

- For heavy duty food grade material handling, railcar unloading, abrasive suction and transfer.
2
What are the key specifications?
Tube
Polyurethane
Cover
Polyurethane
Reinforcement
High tensile strength polyester yarn reinforcement. Clockwise PVC helix with SΩ ground wire.
Temperature Range
-40°F (-40°C) to +140°F (+60°C)
Colors
Clear Tube, Blue Helix
Branding
N/A
Specifications
FDA & USDA compliant material for use in meat & poultry plants.
Design Factor
3:1
3
What are the main product features?
- Clear visual flow and higher transfer pressures.
- -40°F cold weather resistance with sub-zero flexibility.
- Easy to drag with "Go-Glide" external clockwise PVC helix.
- Vacuum up to 29" of Hg.
- SΩ wire must be secured to ground to dissipate static electricity.
- FDA & USDA compliant material for use in meat & poultry plants.
- Safety Ohm (SΩ) ground wire embedded into the hose wall to help prevent the build-up of static electricity.
4
Which sizes or configurations are available?
| Part Number 20ft |
Part Number 50ft |
Part Number 100ft |
ID | OD | Reinf. Braids |
Max. Working Pressure @ 68° F |
Vacuum @ 68°F |
Weight (lbs/ft) |
Minimum Bend Radius |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | BAR | in of Hg | in | mm | |||||
| — | — | 3000-0300-100 | 3" | 76.20mm | 3.80" | 96.52mm | 1 | 70 PSI | 4.83 BAR | 29.0 | 1.20 lbs | 4.00" | 101.60mm |
| — | — | 3000-0400-100 | 4" | 101.60mm | 4.85" | 123.19mm | 1 | 65 PSI | 4.48 BAR | 29.0 | 1.60 lbs | 6.00" | 152.40mm |
| 3000-0500-020 | 3000-0500-050 | 3000-0500-100 | 5" | 127.00mm | 5.80" | 147.32mm | 1 | 45 PSI | 3.10 BAR | 29.0 | 2.46 lbs | 10.00" | 254.00mm |
| — | 3000-0600-050 | 3000-0600-100 | 6" | 152.40mm | 6.92" | 175.77mm | 1 | 40 PSI | 2.76 BAR | 29.0 | 2.86 lbs | 12.00" | 304.80mm |
WARNING: Working pressure (W.P.) is temperature dependent.
No by the foot sales. This is a Packaged Length product.
