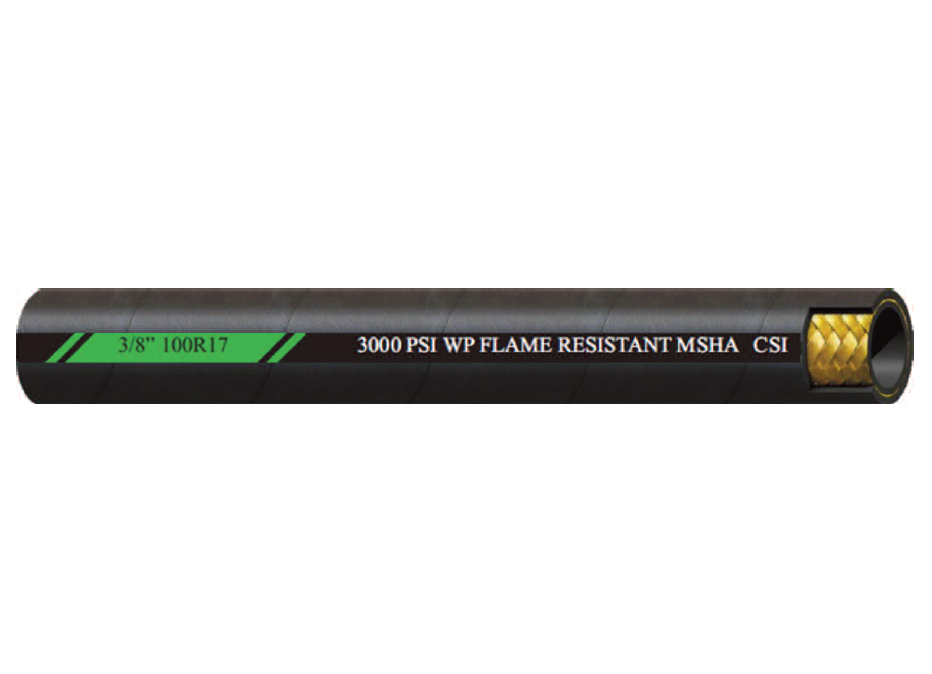

3/8" R17 by Couplamatic | Import 3000 PSI | One Wire Hydraulic Hose | SAE 100R17 | Reduced OD | 3/8" ID | 500ft
Package Quantity: 500 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R17 — Reduced OD, ISO 18752
R17 Import 3000 PSI Constant Working Pressure Hydraulic Hose
Reduced outside diameter SAE 100R17 hose meeting ISO 18752, holding 3,000 PSI constant working pressure from 1/4" through 1".
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R17
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
One (1/4"-1/2") or Two (5/8"-1") Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- 3000 PSI constant working pressure — consistent rating across the full size range.
- Reduced outside diameter — more hose fits through the same routing and clamps.
- ISO 18752 compliant — meets the international performance standard.
- One or two wire braids — one wire in 1/4"–1/2", two wire in 5/8"–1".
- MSHA approved cover — abrasion and flame resistant.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" R17 | 1/4" | 0.492" | 3,000 lbs. | 12,000 lbs. | 2" | 13 lbs. | 500ft |
| 3/8" R17 | 3/8" | 0.649" | 3,000 lbs. | 12,000 lbs. | 3" | 19 lbs. | 500ft |
| 1/2" R17 | 1/2" | 0.776" | 3,000 lbs. | 12,000 lbs. | 4" | 31 lbs. | 350ft |
| 5/8" R17 | 5/8" | 0.937" | 3,000 lbs. | 12,000 lbs. | 4" | 41 lbs. | 250ft |
| 3/4" R17 | 3/4" | 1.090" | 3,000 lbs. | 12,000 lbs. | 5" | 53 lbs. | 250ft |
| 1" R17 | 1" | 1.405" | 3,000 lbs. | 12,000 lbs. | 6" | 82 lbs. | 200ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Specifications and Approvals:
Compatible Series:
