3/8" JH2 by Couplamatic | Two Wire Hydraulic Jack Hose | 3/8" ID | 400ft
Package Quantity: 400 FT
Buy more, save moreDiscounts applied in cart/checkout.
3/8" JH2 by Couplamatic | Two Wire Hydraulic Jack Hose | 3/8" ID | 400ft
Sale price$945.91
Hydraulic Jack Hose — 2:1 Design Factor

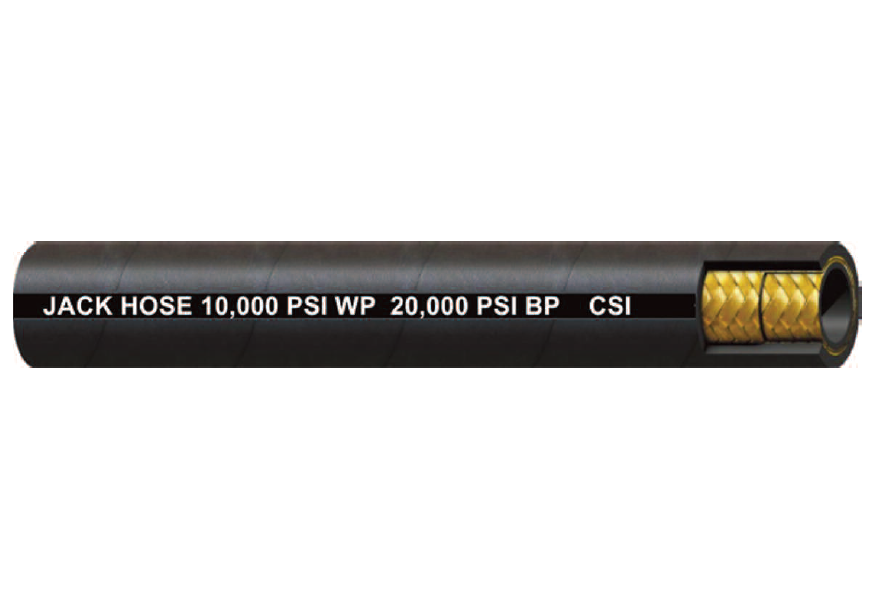

JH2 Two Wire Hydraulic Jack Hose
Two wire braid hose built on a 2:1 design factor for high pressure hydraulic jacking, where the standard 4:1 hydraulic design factor is not the governing requirement.
1
What is this hose used for?
- High Pressure Hydraulic Jacking Applications
2
What are the key specifications?
Cover
Abrasion and Flame Resistant Cover
Reinforcement
Two Wire Braids - 2:1 Design Factor
Temperature
-40°F to +212°F (-40°C to +100°C)
Working Pressure
10,000 lbs.
3
What are the main product features?
- 2:1 design factor — purpose-built for hydraulic jacking service, not general hydraulics.
- Two wire braids — very high working pressures in a compact hose.
- Abrasion and flame resistant cover — withstands job site handling.
- Terminates with Male NPTF solid A Series couplings — per the manufacturer’s coupling recommendation for jack hose.
4
Which sizes are available?
Jack hose is built on a 2:1 design factor and is intended for hydraulic jacking service only. Do not substitute it for general hydraulic hose, and do not exceed the working pressure shown. Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
10000
Compatible Series:
