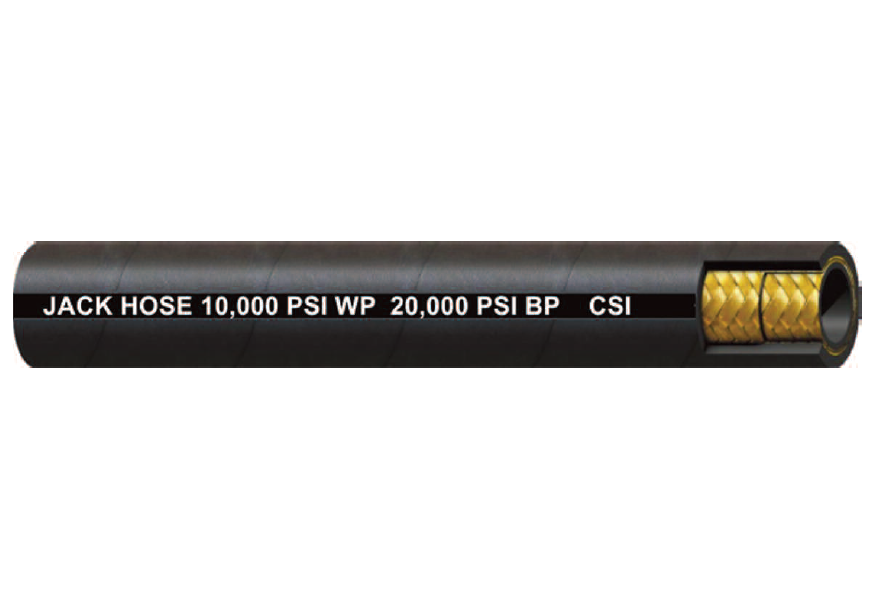

1/4" JH2 by Couplamatic | Two Wire Hydraulic Jack Hose | 1/4" ID | 500ft

1/4" JH2 by Couplamatic | Two Wire Hydraulic Jack Hose | 1/4" ID | 500ft

Sale price$1,652.51

Couplamatic Systems Inc.
Two Wire Braids - 2:1 Design Factor - Two Wire Hydraulic Jack Hose

Package Quantity: 500 FT

Buy More, Save More!
Quantity Price Each
4–7 $1,553.36
8–14 $1,487.26
15+ $1,322.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • JH2 Series
Color(s):
  • Black
Dash Size:
  • -04
Applications: High Pressure Hydraulic Jacking Applications SAE Rating: N/A
Cover: Abrasion and Flame Resistant Cover Reinforcement: Two Wire Braids - 2:1 Design Factor
Temperature: -40F to +212F (-40C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Reel Footage
1/4" JH2 1/4" 0.593" 10,000 lbs. 20,000 lbs. 3.2" 24 lbs. 500ft
3/8" JH2 3/8" 0.750" 10,000 lbs. 20,000 lbs. 3.8" 34 lbs. 400ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
