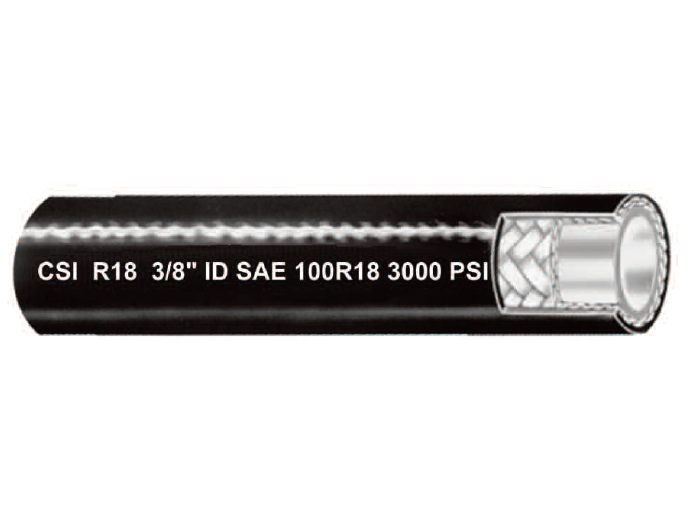

3/8"R18 by Couplamatic | Low Temp Thermoplastic Hydraulic Hose | 3000 PSI | Polyester Braid | SAE 100R18 | 3/8" ID | 250ft
Couplamatic

3/8"R18 by Couplamatic | Low Temp Thermoplastic Hydraulic Hose | 3000 PSI | Polyester Braid | SAE 100R18 | 3/8" ID | 250ft

Sale price$1,085.22

Couplamatic Systems Inc.
Polyester Braid - R18 Low Temp Thermoplastic Hydraulic Hose - 3000 PSI - (SAE 100R18)

Package Quantity: 250 FT

Product Data:

Series:
  • R18 Series
Color(s):
  • Black
Dash Size:
  • -6
Applications: Medium Pressure Hydraulics, Industrial or Agricultural, Cold Storage and Refrigerated Areas SAE Rating: SAE 100R18
Cover: Black Polyester Elastomer (Non-Stick), Perforated Tube: Polyester Elastomer
Reinforcement: Polyester Braid Temperature: -70F to +212F (-57C to +100C)
Part Number Hose ID Hose OD Working Pressure
(lbs)		 Min. Burst Pressure
(lbs)		 Min. Bend Radius Weight per 100ft Coil Footage
1/4" R18 1/4" 0.470" 3,000 lbs. 12,000 lbs. 1.25" 6 lbs. 250ft
3/8" R18 3/8" 0.650" 3,000 lbs. 12,000 lbs. 2.00" 10 lbs. 250ft

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
