1/4" R18 by Couplamatic | Low Temp | Thermoplastic Hydraulic Hose | 3000 PSI | Polyester Braid | SAE 100R18 | 1/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R18 — Low Temperature

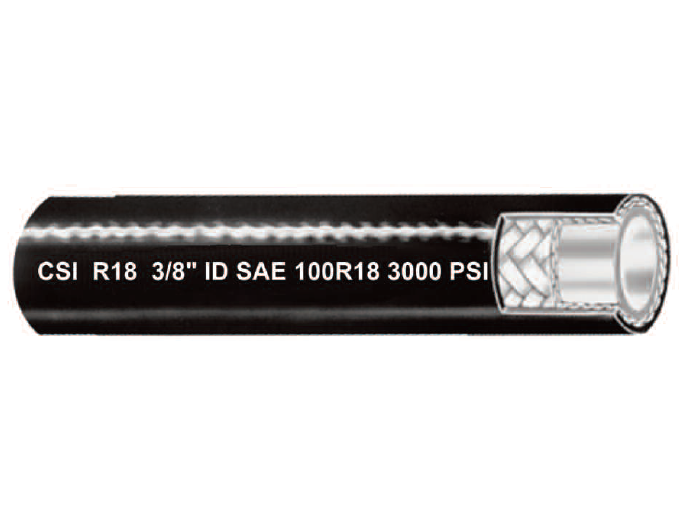

R18 Low Temp 3000 PSI Thermoplastic Hydraulic Hose
Thermoplastic hose rated to -70°F with a non-stick polyester elastomer cover, built for cold storage, refrigerated areas and winter equipment service.
1
What is this hose used for?
- Medium Pressure Hydraulics
- Industrial
- Agricultural
- Cold Storage and Refrigerated Areas
2
What are the key specifications?
SAE Rating
SAE 100R18
Cover
Black Polyester Elastomer (Non-Stick), Perforated
Tube
Polyester Elastomer
Reinforcement
Polyester Braid
Temperature
-70°F to +212°F (-57°C to +100°C)
Size Range
1/4" to 3/8"
3
What are the main product features?
- -70°F service — stays flexible in cold storage and freezer environments.
- Non-stick cover — black polyester elastomer resists ice and product build-up.
- 3000 PSI working pressure — constant across both sizes.
- Polyester elastomer tube — matched to the cover for low temperature flexibility.
4
Which sizes are available?
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
3000
Tubing Construction:
Cover Construction:
Specifications and Approvals:
Compatible Series:
