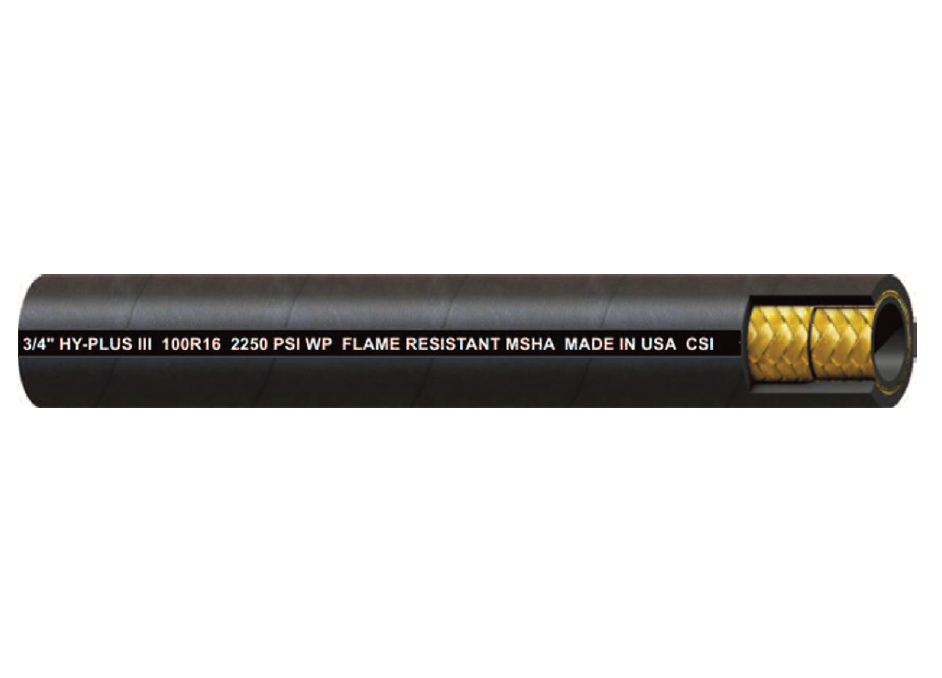

3/4" HPIII by Couplamatic | 2-Wire Domestic Hi-Pressure Extremely Flexible Hydraulic Hose | SAE 100R16 | 3/4" ID | 250ft
Package Quantity: 250 FT
Buy more, save moreDiscounts applied in cart/checkout.
SAE 100R16 — Two Wire
HPIII Hy-Plus III Two Wire Hi-Pressure Hydraulic Hose
Domestically produced two-wire SAE 100R16 hose that crimps to 100R1AT one-wire thin cover specifications and bends in half the radius of standard R1 and R2 hose.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R16
Cover
Abrasion and Flame Resistant Cover, MSHA Approved
Reinforcement
Two Wire Braids
Temperature
-40°F to +212°F (-40°C to +100°C)
3
What are the main product features?
- Extremely flexible — half the bend radius of standard 100R1 and 100R2 hose.
- Crimps to 100R1AT specifications — uses the same one-wire thin cover crimp dimensions.
- Two wire braid reinforcement — 100R16 working pressures in a thin cover construction.
- MSHA approved cover — abrasion and flame resistant.
- Domestically produced — made in the USA.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/4" HPIII | 1/4" | 0.541" | 5,000 lbs. | 20,000 lbs. | 2" | 18 lbs. | 250ft |
| 3/8" HPIII | 3/8" | 0.693" | 4,000 lbs. | 16,000 lbs. | 2.5" | 24 lbs. | 250ft |
| 1/2" HPIII | 1/2" | 0.823" | 3,500 lbs. | 14,000 lbs. | 3.5" | 31 lbs. | 250ft |
| 5/8" HPIII | 5/8" | 0.950" | 2,750 lbs. | 11,000 lbs. | 4" | 36 lbs. | 250ft |
| 3/4" HPIII | 3/4" | 1.103" | 2,250 lbs. | 9,000 lbs. | 4.8" | 49 lbs. | 250ft |
| 1" HPIII | 1" | 1.415" | 2,000 lbs. | 8,000 lbs. | 6" | 67 lbs. | 250ft |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2250
