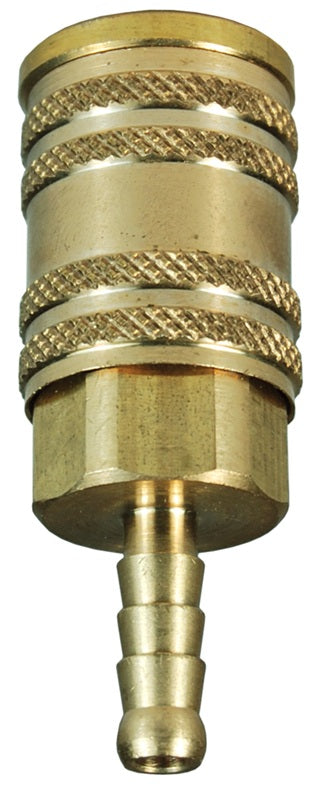

2MS3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 1/4" Manual ARO Interchange | Socket | Nitrile Seal | Brass
2MS3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 1/4" Manual ARO Interchange | Socket | Nitrile Seal | Brass

2MS3-B by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 3/8" Hose ID x 1/4" Manual ARO Interchange | Socket | Nitrile Seal | Brass

Sale price$15.03

Dixon Valve & Coupling
Pneumatic Coupling: M-Series Manual ARO Interchange Coupler (Standard Hose Barb)
Buy More, Save More!
Quantity Price Each
10–39 $14.13
40–79 $12.78
80+ $11.27
Discounts applied in cart/checkout.

Product Data:

Series:
  • M Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female ARO 210 QD Interchange
  • 3/8in Hose Barb
Compatibility & Interchange:
  • ARO 210
  • Parker 50-Series and Amflo Type 'B'
Construction:
  • Machined components are manufactured using solid bar stock.
  • Stainless steel springs. Carbon steel balls and retaining rings.
  • Nitrile (Nitrile Rubber) seals are standard. Providing a temperature range of -40°F to 250°F (-40°C to 121°C).
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
M-Series | Manual ARO Interchange Coupler (Standard Hose Barb)
Part
Number		 Coupling
Type		 Body
Size		 Hose ID Material Length Max.
OD		 Hex Max. Working
Pressure		 Burst
Pressure
Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:		 Brass Coupler
& Brass Plug:		 Brass Coupler
& Steel Plug:
2MS2-B Socket/Hose Barb 1/4" 1/4" Brass 2.36"
(60.0mm)		 0.87"
(22.0mm)		 3/4" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 12,700 PSI
(876 bar)		 12,400 PSI
(855 bar)
2MS3-B Socket/Hose Barb 1/4" 3/8" Brass 2.76"
(70.0mm)		 0.87"
(22.0mm)		 13/16" 300 PSI
(20 bar)		 300 PSI
(20 bar)		 12,700 PSI
(876 bar)		 12,400 PSI
(855 bar)
M-Series | ARO Interchange Plug (Standard Hose Barb)
Part Number Coupling Type Body Size Hose ID Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2S2 Plug/Male 1/4" 1/4" Steel 2.00"
(50.8mm)		 0.56"
(14.2mm)		 -
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
    M2S3 Plug/Male 1/4" 3/8" Steel 2.00"
    (50.8mm)    		 0.56"
    (14.2mm)    		 -
    • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
    • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
      M3S3 Plug/Male 3/8" 3/8" Steel 2.25"
      (57.2mm)      		 0.88"
      (22.4mm)      		 -
      • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 3,300 PSI (228 bar)
        M-Series | ARO Interchange Plug (Push-Loc Barb)
        Part Number Coupling Type Body Size Hose ID Material Length Maximum OD Hex Working Pressure / Burst Pressure
        when Connected to:
        M2B2 Plug/Male 1/4" 1/4" Steel 2.09"
        (53.1mm)        		 0.69"
        (17.52mm)        		 -
        • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
        • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
