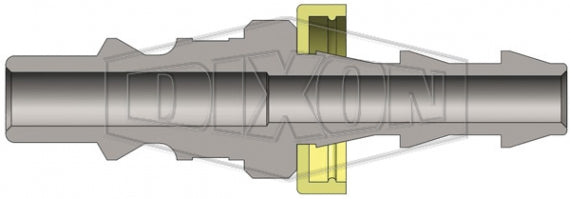

M2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" ARO Interchange | Plug | Steel
M2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" ARO Interchange | Plug | Steel

M2B2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Push-Loc Hose Barb | 1/4" Hose ID x 1/4" ARO Interchange | Plug | Steel

Sale price$10.47

Dixon Valve & Coupling
Pneumatic Coupling: M-Series ARO Interchange Plug (Push-Loc Barb)
Buy More, Save More!
Quantity Price Each
10–39 $9.84
40–79 $8.90
80+ $7.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • M Series
Shape:

Straight

Ends Configuration:
  • 1/4in Male ARO 210 QD Interchange
  • 1/4in Hose Barb
Compatibility & Interchange:
  • Automatic couplings interchange with ARO 210/310 and Hansen 210/310
  • Manual Couplings Interchange with Parker 50-Series and Amflo Type 'B'
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:
M-Series | ARO Interchange Plug (Push-Loc Barb)
Part Number Coupling Type Body Size Hose ID Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2B2 Plug/Male 1/4" 1/4" Steel 2.09"
(53.1mm)		 0.69"
(17.52mm)		 -
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)

    Dixon Valve & Coupling

    Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
