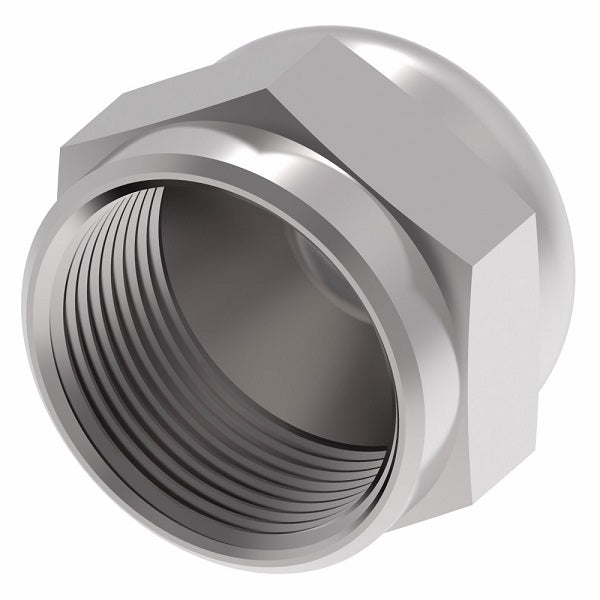

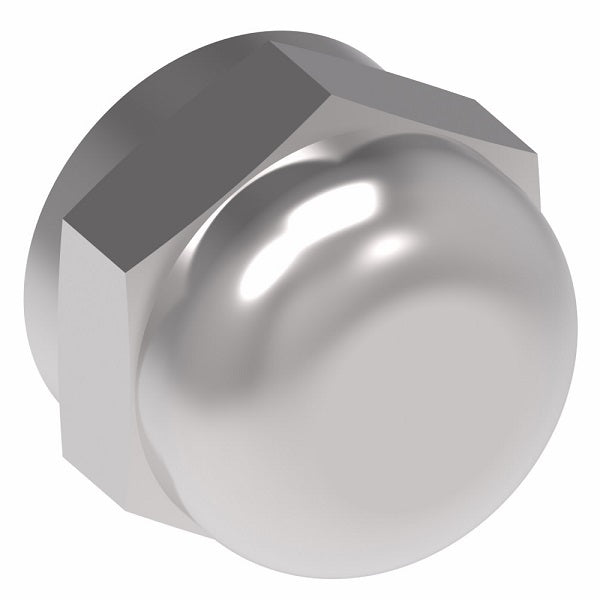

259-210292-12 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -12 Female 37° JIC Flare | Stainless Steel
259-210292-12 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -12 Female 37° JIC Flare | Stainless Steel
259-210292-12 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -12 Female 37° JIC Flare | Stainless Steel

259-210292-12 Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -12 Female 37° JIC Flare | Stainless Steel

Sale price$79.10
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 070112
Part Number
Steel		 Part Number
Stainless Steel 		Tube O.D. Thread T A B
210292-2S - - - - -
210292-3S - 0.19" 3/8-24 0.56" 0.44"
210292-4S 259-210292-4 0.25" 7/16-20 0.59" 0.56"
210292-5S - 0.31" 1/2-20 0.61" 0.62"
210292-6S 259-210292-6 0.38" 9/16-18 0.62" 0.69"
210292-8S 259-210292-8 0.50" 3/4-16 0.75" 0.88"
210292-10S - 0.63" 7/8-14 0.84" 1.00"
210292-12S 259-210292-12 0.75" 1-1/16-12 0.91" 1.25"
210292-16S - 1.00" 1-5/16-12 1.02" 1.50"
210292-20S - 1.25" 1-5/8-12 1.06" 2.00"
210292-24S - 1.50" 1-7/8-12 1.19" 2.25"
210292-32S - 2.00" 2-1/2-12 1.44" 2.88"

Additional Product Data:

Shape:

No Orientation

Ends Configuration:
  • 3/4in Female JIC
Material(s):
  • Stainless Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
