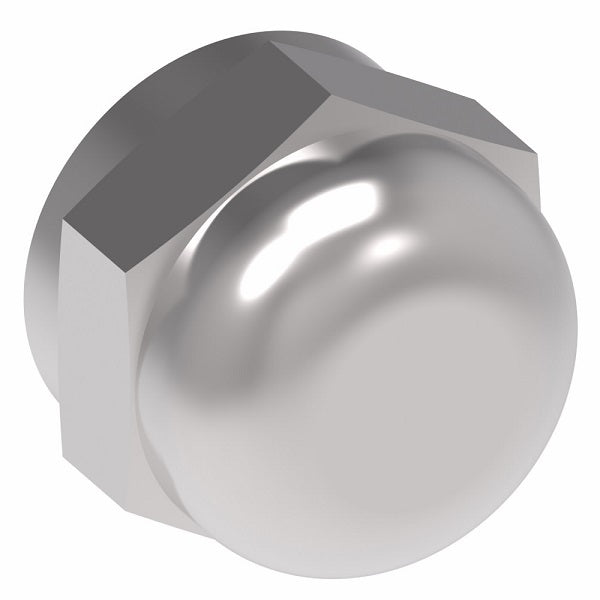

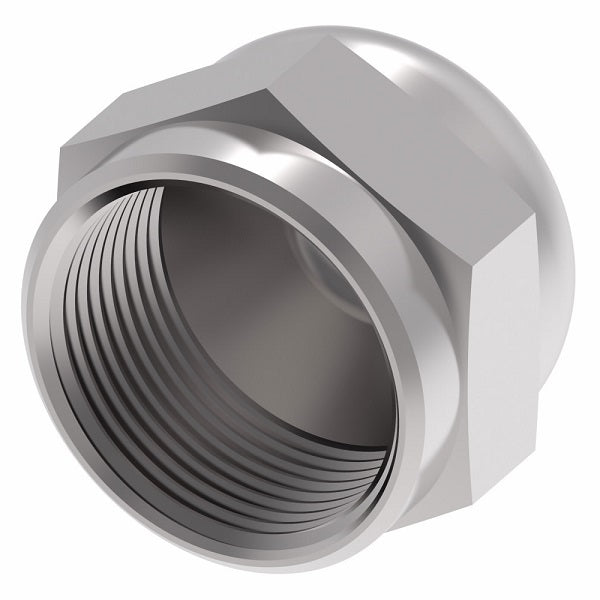

210292-8S Aeroquip by Danfoss | Female 37° JIC Flare Cap Nut Adapter | -08 Female 37° JIC Flare | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
Female 37° JIC Flare Cap Nut Adapter
Female 37° JIC Flare
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $2.96 |
| 40–79 | $2.68 |
| 80+ | $2.36 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Part Number Stainless Steel |
Tube O.D. | Thread T | A | B |
| 210292-2S | - | - | - | - | - |
| 210292-3S | - | 0.19" | 3/8-24 | 0.56" | 0.44" |
| 210292-4S | 259-210292-4 | 0.25" | 7/16-20 | 0.59" | 0.56" |
| 210292-5S | - | 0.31" | 1/2-20 | 0.61" | 0.62" |
| 210292-6S | 259-210292-6 | 0.38" | 9/16-18 | 0.62" | 0.69" |
| 210292-8S | 259-210292-8 | 0.50" | 3/4-16 | 0.75" | 0.88" |
| 210292-10S | - | 0.63" | 7/8-14 | 0.84" | 1.00" |
| 210292-12S | 259-210292-12 | 0.75" | 1-1/16-12 | 0.91" | 1.25" |
| 210292-16S | - | 1.00" | 1-5/16-12 | 1.02" | 1.50" |
| 210292-20S | - | 1.25" | 1-5/8-12 | 1.06" | 2.00" |
| 210292-24S | - | 1.50" | 1-7/8-12 | 1.19" | 2.25" |
| 210292-32S | - | 2.00" | 2-1/2-12 | 1.44" | 2.88" |
