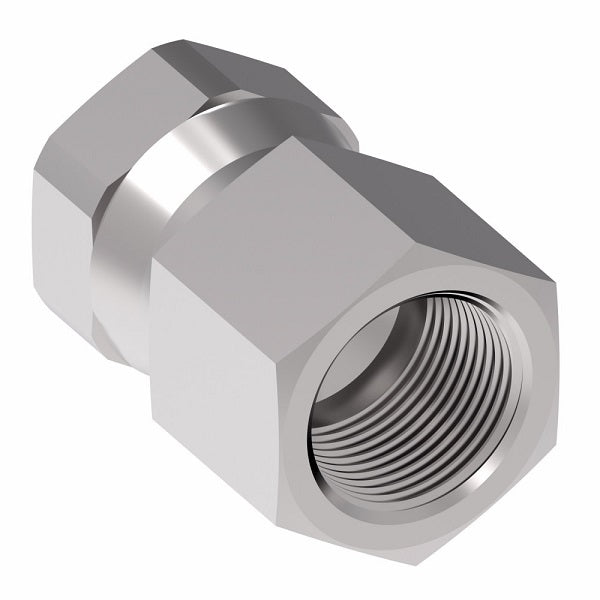

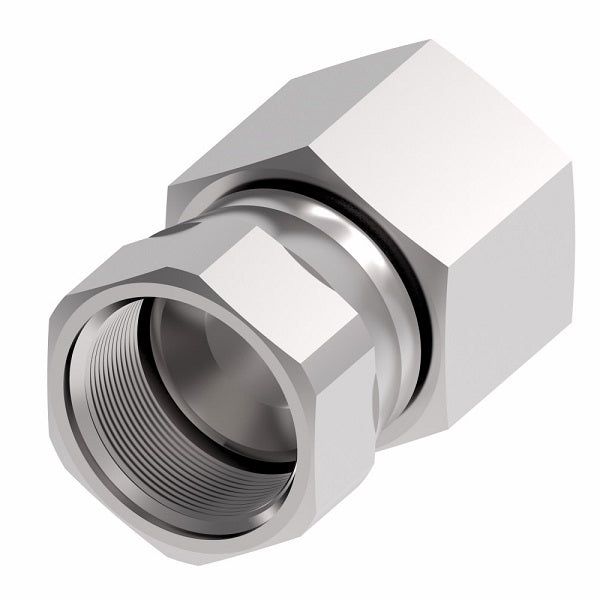

2242-8-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -12 Female JIC Swivel | Steel
2242-8-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -12 Female JIC Swivel | Steel
2242-8-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -12 Female JIC Swivel | Steel

2242-8-12S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel Adapter | -08 Female NPTF x -12 Female JIC Swivel | Steel

Sale price$21.67
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 070603
Part Number
Steel 		Tube O.D. Thread P Thread T A
2242-2-4S 0.25" 1/8-27 7/16-20 0.85"
2242-2-5S 0.31" 1/8-27 1/2-20 0.87"
2242-4-4S 0.25" 1/4-18 7/16-20 1.11"
2242-4-5S 0.31" 1/4-18 1/2-20 1.10"
2242-4-6S 0.38" 1/4-18 9/16-18 1.18"
2242-6-6S 0.38" 3/8-18 9/16-18 1.16"
2242-6-8S 0.50" 3/8-18 3/4-16 1.20"
2242-8-6S 0.38" 1/2-14 9/16-18 1.42"
2242-8-8S 0.50" 1/2-14 3/4-16 1.48"
2242-8-10S 0.63" 1/2-14 7/8-14 1.47"
2242-8-12S 0.75" 1/2-14 1-1/16-12 1.45"
2242-12-12S 0.75" 3/4-14 1-1/16-12 1.49"
2242-12-14S 0.88" 3/4-14 1-3/16-12 1.55"
2242-16-16S 1.00" 1-11-1/2 1-5/16-12 1.85"
2242-20-20S 1.25" 1-1/4-11-1/2 1-5/8-12 2.02"

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Female NPTF
  • 3/4in Female JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
